제품 상세 정보:
|
| 부품 번호: | IQEH80NE2LM7UCGSC | 트랜지스터 폴라릿: | n 채널 |
|---|---|---|---|
| Vds - 드레인 소스 항복 전압: | 25 Ｖ | Id - 연속 드레인 전류: | 282A |
| Rds On - 드레인 소스 저항: | 800uΩ | Pd - 전력 손실: | 107 w |

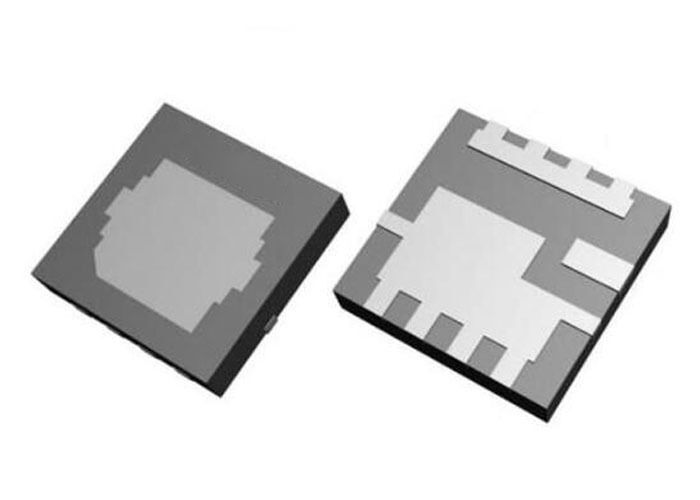

IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9
Product Description Of IQEH80NE2LM7UCGSC
IQEH80NE2LM7UCGSC is OptiMOS™ 7 25 V offers a new level of application-optimization, enabling peak performance for data centers, servers, AI more. The portfolio is available in two technology flavors, including products optimized for hard-switching as well as for soft-switching topologies. Hard-switching optimized products come with an excellent Miller ratio, FOMs and RDS(on)10, while products optimized for soft-switching offer ultra-low RDS(on)45 and FOMQg.
Specification Of IQEH80NE2LM7UCGSC
|
Series
|
OptiMOS™ 7
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
25 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
43A (Ta), 282A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
0.8mOhm @ 20A, 10V
|
|
Vgs(th) (Max) @ Id
|
2V @ 279µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
37 nC @ 10 V
|
|
Vgs (Max)
|
±16V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
3900 pF @ 12 V
|
|
Power Dissipation (Max)
|
2.5W (Ta), 107W (Tc)
|
|
Supplier Device Package
|
PG-WHTFN-9-1
|
|
Package / Case
|
9-PowerWDFN
|
Features Of IQEH80NE2LM7UCGSC
N‑channel, logic level
Very low on‑resistance RDS(on)
Optimized for hard‑switching topologies
Optimized for best FOMoss
Excellent Miller ratio for dv/dt ruggedness
Superior thermal resistance
100% avalanche tested
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio, FOM, RDS(on)10
Soft-switch.: RDS(on)45, FOMQg
+175°C junction temperature rating
