제품 상세 정보:
|
| 부품 번호: | IQEH42NE2LM7ZCGSC | 트랜지스터 폴라릿: | n 채널 |
|---|---|---|---|
| Vds - 드레인 소스 항복 전압: | 25 Ｖ | Id - 연속 드레인 전류: | 460 A |
| Pd - 전력 손실: | 150 W. | Qg - 게이트 요금: | 29nC |

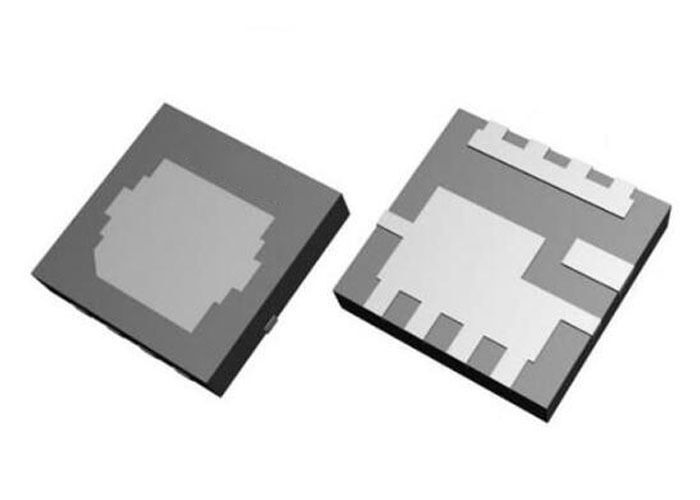

IQEH42NE2LM7ZCGSC Integrated Circuit Chip 25V 460A OptiMOS 7 Power MOSFET Transistor
Product Description Of IQEH42NE2LM7ZCGSC
IQEH42NE2LM7ZCGSC is 25V, OptiMOS™ 7 switching optimized power MOSFETs Transistor for hard- and soft-switching topologies in PQFN 3.3x3.3 Source-Down package.
IQEH42NE2LM7ZCGSC OptiMOS™ 7 25V offers a new level of application-optimization, enabling peak performance for data centers, servers, AI & more. The portfolio is available in two technology flavors, including products optimized for hard-switching as well as for soft-switching topologies. Hard-switching optimized products come with an excellent Miller ratio, FOMs and RDS(on) 10, while products optimized for soft-switching offer ultra-low RDS(on)45 and FOMQg.
Specification Of IQEH42NE2LM7ZCGSC
| Product Category: | MOSFETs |
| Si | |
| SMD/SMT | |
| PG-WHTFN-9 | |
| N-Channel | |
| 1 Channel | |
| 25 V | |
| 460 A | |
| 12 V | |
| 1.7 V | |
| 29 nC | |
| - 55℃ | |
| + 175℃ | |
| 150 W | |
| Enhancement | |
| Configuration: | Single |
| Fall Time: | 5.2 ns |
| Forward Transconductance - Min: | 100 S |
| Product Type: | MOSFETs |
| Rise Time: | 2 ns |
| Subcategory: | Transistors |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 35 ns |
| Typical Turn-On Delay Time: | 5.9 ns |
Features Of IQEH42NE2LM7ZCGSC
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio,FOM,RDS(on)10
Soft-switch.:RDS(on)45, FOMQg
+175°C junction temperature rating
Source-down package variants
Center-gate footprint, DSC & overmolded
