제품 상세 정보:
|
| 부품번호: | MC9S08PA32AVLC | 버스: | 최고 20까지 마하즈 |
|---|---|---|---|
| 온도 범위: | -40 'Ｃ 내지 105 'Ｃ | 데이터 변환기: | A/D 12x12b |
| 프로그램 메모리 크기: | 32KB(32K x 8) | 연결성: | I2C, 린뷔스, SPI, UART / 범용 동기／비동기 송수신 회로 |

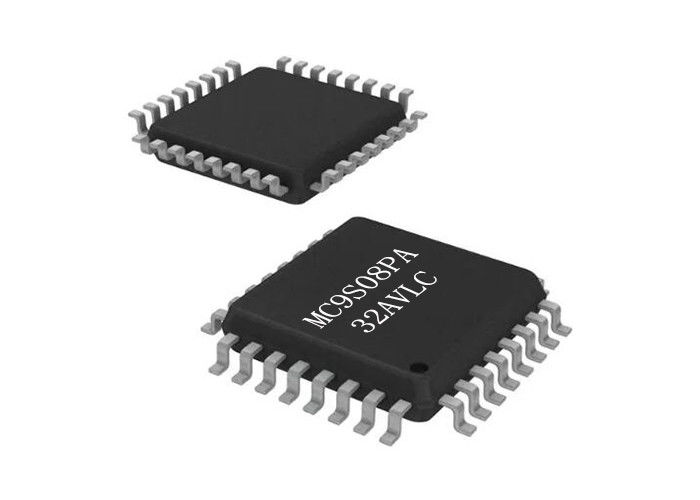

Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH
Product Description Of MC9S08PA32AVLC
MC9S08PA32AVLC is 8-Bit S08 central processor unit (CPU), Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 105 °C. Package is 32-LQFP (7x7).
Specification Of MC9S08PA32AVLC
| Part Number | MC9S08PA32AVLC |
|
Core Processor
|
S08
|
|
Core Size
|
8-Bit
|
|
Speed
|
20MHz
|
|
Connectivity
|
I²C, LINbus, SPI, UART/USART
|
|
Peripherals
|
LVD, POR, PWM, WDT
|
|
Number of I/O
|
28
|
|
Program Memory Size
|
32KB (32K x 8)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
256 x 8
|
|
RAM Size
|
4K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2.7V ~ 5.5V
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
32-LQFP
|
|
Supplier Device Package
|
32-LQFP (7x7)
|
Features Of MC9S08PA32AVLC
Typical Crystal Or Resonator Circuit Of MC9S08PA32AVLC
