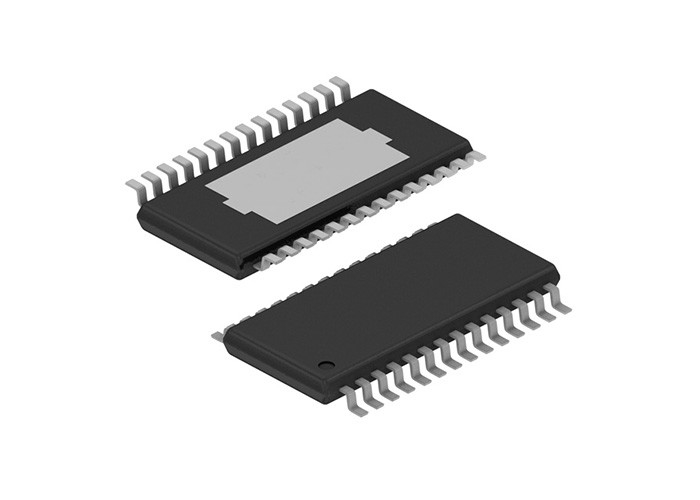

Automobile Chips TPS92602BQPWPRQ1 Single And Dual Channel Automotive Headlight LED Driver

Automobile Chips TPS92602BQPWPRQ1 Single And Dual Channel Automotive Headlight LED Driver

Product Description Of TPS92602BQPWPRQ1

TPS92602BQPWPRQ1 devices is a singlechannel and dual-channel high-side-current LED driver. With full protection and diagnostics, this family of devices is dedicated for and ideally suited to automotive front lighting.

Specification Of TPS92602BQPWPRQ1

Features Of TPS92602BQPWPRQ1

• Input Voltage: 4 V–40 V (45 V Abs. Max.)

• Output Voltage: 4 V–75 V (80 V Abs. Max.)

• Fixed-Frequency Current-Mode Controller With Integrated Slope Compensation

• Two Regulation Loops, Constant-Current Output and Constant-Voltage Output of Each Channel

• High-Side Current Sense

• Output Voltage Sense, Internal Voltage Reference: 2.2 V ±5%

• Integrated Low-Side NMOS-FET Driver: Peak Gate-Drive Current Typ. 0.7 A

• Frequency Synchronization

• Both PWM Dimming and Analog Dimming

Applications Of TPS92602BQPWPRQ1

• Automotive Headlight LED Driver

• High-Brightness LED Applications

Typical Schematic Of TPS92602BQPWPRQ1
