제품 상세 정보:
|
| Part Number: | VNLD5090TR | Series: | OMNIFET III™, VIPower™ |
|---|---|---|---|
| Output Configuration: | Low Side | Voltage - Load: | 36V (Max) |
| Current - Output (Max): | 13A | Rds On (Typ): | 90mOhm (Max) |

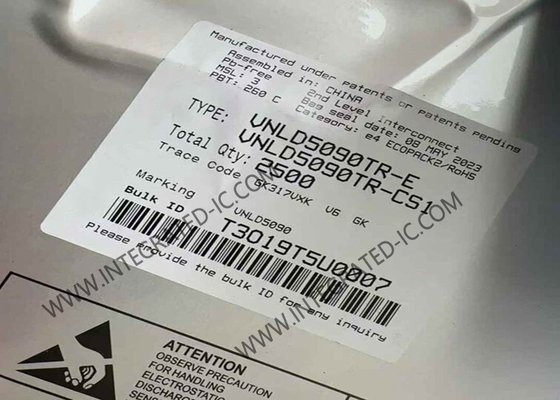

VNLD5090TR Integrated Circuit Chip OMNIFET III Fully Protected Low Side Driver SOIC8
Product Description Of VNLD5090TR
VNLD5090TR is OMNIFET III fully protected low-side driver for automotive applications, It intended for driving resistive or inductive loads with one side connected to the battery. Built-in thermal shutdown protects the chip from overtemperature and short-circuit. Output current limitation protects the device in an overload condition. In case of long duration overload, the device limits the dissipated power to a safe level up to thermal shutdown intervention.Thermal shutdown, with automatic restart, allows the device to recover normal operation as soon as a fault condition disappears. Fast demagnetization of inductive loads is achieved at turn-off.
Specification Of VNLD5090TR
| Part Number: | VNLD5090TR |
| Product Category: | Gate Drivers |
| Driver ICs - Various | |
| Low-Side | |
| SMD/SMT | |
| SOIC-8 | |
| 1 Driver | |
| 2 Output | |
| 18 A | |
| 4.5 V | |
| 5.5 V | |
| 10 us | |
| 2.7 us | |
| - 40 C | |
| + 150 C | |
| Maximum Turn-Off Delay Time: | 3.4 us |
| Maximum Turn-On Delay Time: | 8 us |
| Operating Supply Current: | 30 uA |
| Product Type: | Gate Drivers |
| Rds On - Drain-Source Resistance: | 90 mOhms |
Key Features Of VNLD5090TR
Drain current: 13 A
ESD protection
Overvoltage clamp
Thermal shutdown
Current and power limitation
Very low standby current
Very low electromagnetic susceptibility
