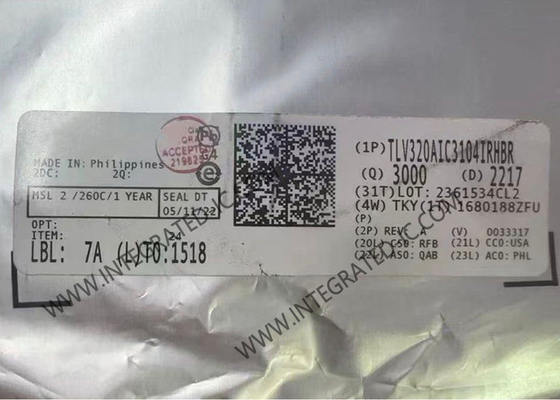

TLV320AIC3104IRHBR Integrated Circuit Chip Low-Power Stereo Audio Codec For Portable Audio And Telephony

TLV320AIC3104IRHBR Integrated Circuit Chip Low-Power Stereo Audio Codec For Portable Audio And Telephony

Product Description Of TLV320AIC3104IRHBR
TLV320AIC3104IRHBR is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. The device includes extensive register-based power control is included, thus enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making the device ideal for portable battery-powered audio and telephony applications.

Specifications Of TLV320AIC3104IRHBR

Features Of TLV320AIC3104IRHBR
Stereo audio DAC:
102-dBA signal-to-noise ratio
16-, 20-, 24-, or 32-bit data
Supports sample rates from 8 kHz to 96 kHz
3D, bass, treble, EQ, or de-emphasis effects
Flexible power saving modes and performance are available
Stereo audio ADC:
92-dBA signal-to-noise ratio
Supports sample rates from 8 kHz to 96 kHz
Digital signal processing and noise filtering available during record
Six audio input pins:
One stereo pair of single-ended inputs
One stereo pair of fully differential inputs
Six audio output drivers:
Stereo fully differential or single-ended headphone drivers
Fully differential stereo line outputs
Low power: 14-mW stereo 48-kHz playback with 3.3-V analog supply
Ultra-low-power mode with passive analog bypass
Programmable I/O analog gains
Automatic gain control (AGC) for record
Programmable microphone bias level
Programmable PLL for flexible clock generation
I2C control bus
Audio serial data bus supports I2S, left- and right-justified, DSP, and TDM modes
Extensive modular power control
Power supplies:
Analog: 2.7 V to 3.6 V
Digital Core: 1.525 V to 1.95 V
Digital I/O: 1.1 V to 3.6 V
Package: 5-mm × 5-mm, 32-pin VQFN

Applications Of TLV320AIC3104IRHBR
Headsets
IP network cameras
IP telephones
Wireless speakers
