제품 상세 정보:
|
| Part Number: | NCV5661MN12T2G | Output Voltage:: | 1.2 V |
|---|---|---|---|
| Output Current:: | 1 A | Number of Outputs:: | 1 Output |
| Quiescent Current:: | 3 mA | Input Voltage - Min:: | 2 V |
| 강조하다: | NCV5661MN12T2G,NCV5661MN12T2G Integrated Circuit Chip,LDO Linear Voltage Regulator |
||

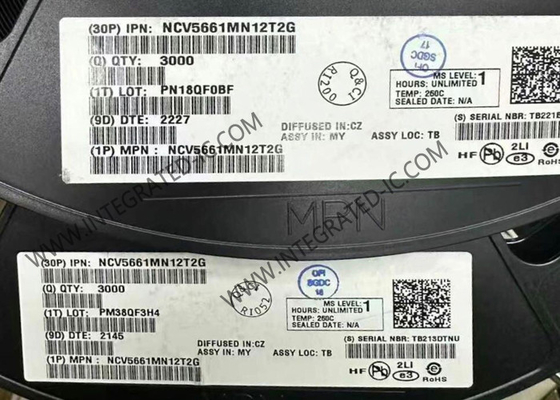

NCV5661MN12T2G Integrated Circuit Chip High Performance LDO Linear Voltage Regulator
Proeuct Description Of NCV5661MN12T2G
NCV5661MN12T2G is a high performance, low dropout (LDO) linear voltage regulator designed for high power applications that require up to 1.0 A current. It is offered in both fixed and adjustable output versions. With output voltages as low as 0.9 V and ultra-fast response times for load transients, the NCV5661MN12T2G also provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of this device. A thermally robust, 5 pin DPAK or DFN 3.0 x 3.3 mm, combined with an architecture that offers low ground current (independent of load), provides for a superior high-current LDO solution.
Specifications Of NCV5661MN12T2G
|
|
1.2 V |
|
|
1 A |
|
|
1 Output |
|
|
Positive |
|
|
3 mA |
|
|
2 V |
|
|
9 V |
|
|
Fixed |
|
|
- 40 C |
|
|
+ 150 C |
|
|
1 V |
|
Dropout Voltage - Max: |
1.3 V at 1 A |
|
Height: |
0.85 mm |
|
Length: |
3 mm |
|
Line Regulation: |
0.03 % |
|
Load Regulation: |
0.2 % |
|
Reference Voltage: |
900 mV |
|
Voltage Regulation Accuracy: |
1 % |
|
Width: |
3.3 mm |
|
Unit Weight: |
21.100 mg |
Features Of NCV5661MN12T2G
Ultra-Fast Transient Response (Settling Time: 1-3 µs
Low Noise Without Bypass Capacitor (26 µVrms)
Low Ground Current Independent of Load(3.0 mA Maximum)
Fixed/Adjustable Output Versions
Enable Function
Error Flag (Fixed Output Version)
Current Limit Protection
Thermal Protection
0.9 V Reference Voltage for Ultra-Low Output Operation
Power Supply Rejection Ratio > 65 dB
Applications Of NCV5661MN12T2G
Servers
Networking Equipment
Automotive
