제품 상세 정보:
|
| 부문 번호: | NCV4276BDT33RKG | 전압 - 입력 (최대): | 45V |
|---|---|---|---|
| 전류 - 출력: | 400mA | 전류 - 조용 (Iq): | 200µA |
| PSRR: | 70dB (100Hz) | 전류 - 공급 (최대): | 35 마 |

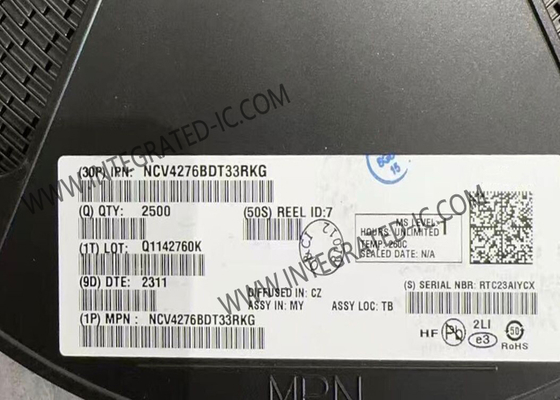

NCV4276BDT33RKG Integrated Circuit Chip 400mA Low Drop Out Regulator 45V LDO Regulator
Product Description Of NCV4276BDT33RKG
NCV4276BDT33RKG is a 400 mA output current integrated low dropout regulator family designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges.
NCV4276BDT33RKG is offered with fixed and adjustable voltage versions available in 2% output voltage accuracy. It has a high peak input voltage tolerance and reverse input voltage protection.
NCV4276BDT33RKG also provides overcurrent protection, overtemperature protection and inhibit for control of the state of the output voltage.
Specification Of NCV4276BDT33RKG
| Part Number: | NCV4276BDT33RKG |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| TO-252-5 | |
| 3.3 V | |
| 400 mA | |
| 1 Output | |
| Positive | |
| 25 mA | |
| 4.5 V | |
| 45 V | |
| 70 dB | |
| Fixed | |
| - 40 ℃ | |
| + 150 ℃ | |
| 500 mV | |
| Dropout Voltage - Max: | 500 mV at 250 mA |
| Line Regulation: | 4 mV |
| Load Regulation: | 3 mV |
| Operating Supply Current: | 25 mA |
Features Of NCV4276BDT33RKG
Fixed 5.0 V, 3.3 V and Adjustable Voltage Version (from 2.5 V to 20 V) 2% Output Voltage
Output Current up to 400 mA
Enable
Protections:
- +45 V Peak Transient Voltage
- -42V Reverse Voltage
- Short Circuit
- Thermal Overload
AEC-Q100 Qualified
500 mV (max) Dropout Voltage
Applications Of NCV4276BDT33RKG
Body and Chassis
Engine Control Unit
Powertrain
