제품 상세 정보:
|
| 부문 번호: | BTS5210L | 출력 구성: | 높은 쪽 |
|---|---|---|---|
| 전압 - 부하: | 5.5V ~ 40V | 경향 - 출력 (맥스): | 1.8A |
| (Typ) 위의 Rds: | 110mOhm | 작동 온도: | -40' Ｃ ~ 150' Ｃ (TJ) |

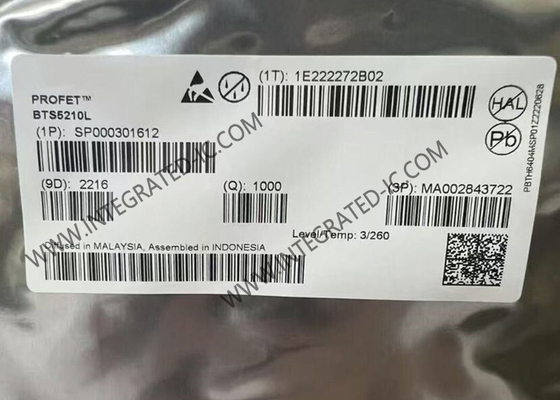

BTS5210L Integrated Circuit Chip 1.8A High Side Switch PG-DSO-12 Power Switch IC
Product Overviews Of BTS5210L
BTS5210L is High side power switch with integrated vertical power FET, providing embedded protection and diagnostic function.
Specification Of BTS5210L
| Part Number: | BTS5210L |
| Product Category: | Power Switch ICs - Power Distribution |
| High Side | |
| 2 Output | |
| 2.4 A | |
| 6.5 A | |
| 140 mOhms | |
| 250 us | |
| 270 us | |
| 5.5 V to 40 V | |
| - 40 ℃ | |
| + 150 ℃ | |
| SMD/SMT | |
| SOIC-12 | |
| Classic PROFET | |
| Pd - Power Dissipation: | 3.05 W |
| Product: | Power Switches |
Features Of BTS5210L
Very low standby current
CMOS Compatible input
Improved electromagnetic compatibility (EMC)
Fast demagnetization of inductive loads
Stable behavior at undervoltage
Wide operating voltage range
Logic ground independent from load ground
Applications Of BTS5210L
Diesel direct injection
LED strips and signage
Multi-port fuel injection
