제품 상세 정보:
|
| 부품 번호: | MPQ2166GDE-AEC1-Z | 출력 전압 :: | 600 mV ~ 5.5 v |
|---|---|---|---|
| 출력 전류 :: | 3 a | 출력 수 :: | 2 출력 |
| 입력 전압 - 최소 :: | 2.7 v | 입력 전압 - 최대 :: | 6 v |

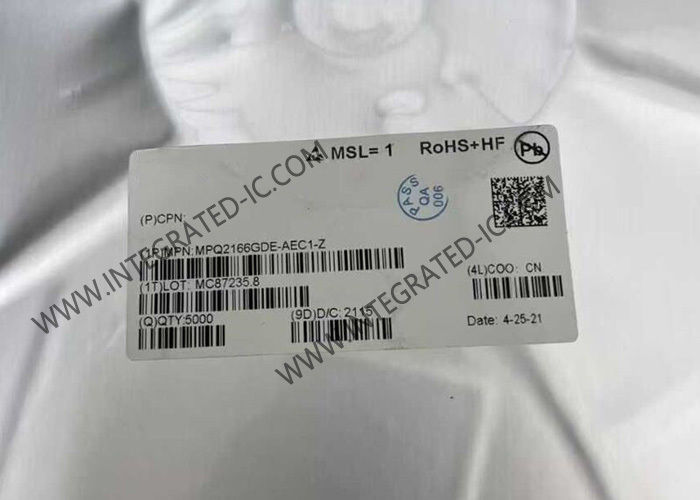

MPQ2166GDE-AEC1-Z Integrated Circuit Chip Automotive 6V Dual Synchronous Buck Regulators
Product Description Of MPQ2166GDE-AEC1-Z
MPQ2166GDE-AEC1-Z is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V. MPQ2166GDE-AEC1-Z can be configured as a 2A/2A or 3A/1A output current regulator and is ideal for powering portable equipment that runs on a single-cell lithium-ion (Li+) battery due to a low 60µA quiescent current.
Specifications Of MPQ2166GDE-AEC1-Z
|
|
600 mV to 5.5 V |
|
|
3 A |
|
|
2 Output |
|
|
2.7 V |
|
|
6 V |
|
|
60 uA |
|
|
3 MHz |
|
|
- 40 C |
|
|
+ 125 C |
|
Input Voltage: |
2.7 V to 6 V |
|
Supply Voltage - Min: |
2.7 V |
Features Of MPQ2166GDE-AEC1-Z
2.7V to 6V Operating Input Range
2A/2A or 3A/1A Continuous Current
55mΩ/20mΩ RDS(ON)
Programmed Frequency up to 3MHz
External Sync Clock Up to 3MHz
180o Phase Shifted Operation
Power Good (PG) Indicators
External Soft Start (SS) and Track
Adjustable Advanced Asynchronous Modulation (AAM) Mode or Forced Continuous Conduction Mode (FCCM)
Peak Efficiency >90%
Output Adjustable from 0.6V to 5.5V in AAM Mode, 0.6V to 0.5 x VIN in FCCM
100% Duty Cycle Operation
60µA Quiescent Current
Cycle-by-Cycle Over-Current Protection (OCP)
Short-Circuit Protection (SCP) with Hiccup Mode and Valley Current Detection
Thermal Shutdown
Available in a Wettable Flank Package
Available in AEC-Q100 Grade-1
Applications Of MPQ2166GDE-AEC1-Z
Automotive Infotainment
Automotive Clusters
Automotive Telematics
Battery-Powered Devices
Portable Instruments
