제품 상세 정보:
|
| 부품 번호: | DS25BR150TSD | 운전자들의 번호 :: | 1개 드라이버 |
|---|---|---|---|
| 수신기들의 수 :: | 수신기 1명 | 데이터 속도:: | 3125MB/초 |
| 입력 유형 :: | CML, LVDS, LVPECL | 출력형 :: | LVDS |

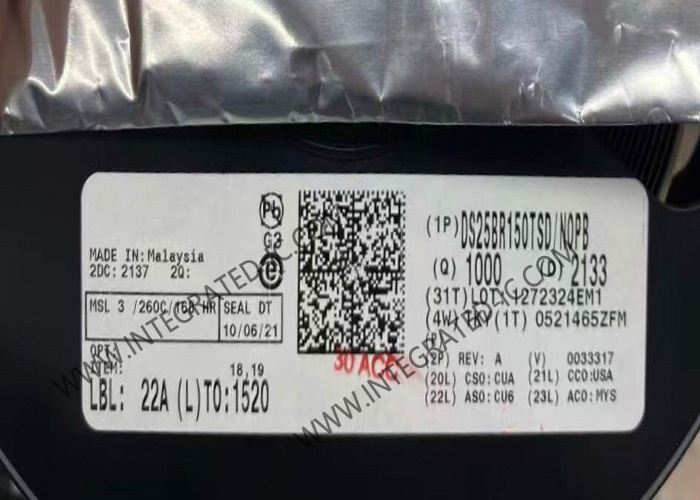

DS25BR150TSD Integrated Circuit Chip Single Channel 3.125Gbps LVDS Buffer WSON-8
Product Description Of DS25BR150TSD
DS25BR150TSD is a single channel 3.125 Gbps LVDS buffer optimized for high-speed signal transmission over printed circuit boards and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity.
Specifications Of DS25BR150TSD
|
|
1 Driver |
|
|
1 Receiver |
|
|
3125 Mb/s |
|
|
CML, LVDS, LVPECL |
|
|
LVDS |
|
|
3.6 V |
|
|
3 V |
|
|
- 40 C |
|
|
+ 85 C |
|
Height: |
0.8 mm |
|
Input Voltage - Max: |
100 mV |
|
Input Voltage - Min: |
- 100 mV |
|
Length: |
3 mm |
|
Maximum Output Voltage: |
450 mV |
|
Moisture Sensitive: |
Yes |
|
Operating Supply Current: |
35 mA |
|
Operating Supply Voltage: |
3.3 V |
|
Pd - Power Dissipation: |
2.08 W |
|
Propagation Delay Time: |
0.52 ns |
|
Width: |
3 mm |
|
Unit Weight: |
18.400 mg |
Feature Of DS25BR150TSD
DC - 3.125 Gbps Low Jitter, High Noise Immunity, Low Power Operation
On-Chip 100 Ω Input and Output Termination Minimizes Insertion and Return Losses, Reduces Component Count and Minimizes Board Space
7 kV ESD on LVDS I/O Pins Protects Adjoining Components
Small 3 mm x 3 mm WSON-8 Space Saving Package
Applications Of DS25BR150TSD
Clock or Data Buffering / Repeating
OC-48 / STM-16 Clock or Data Buffering / Repeating
InfiniBand
FireWire
