제품 상세 정보:
|
| 부품 번호: | 234206-e | 위치 수: | 12 위치 |
|---|---|---|---|
| 정점: | 1.27 mm (0.05 인치) | 행의 수: | 2 열 |
| 현재 등급: | 1.6 A | 최대 데이터 속도: | 3Gbps |
| 강조하다: | 234206-E,234206-E Connectors,12POS PCB Connectors |
||

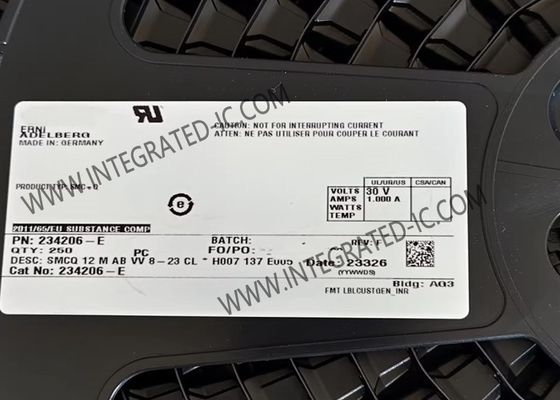

234206-E Connectors 12POS PCB Connectors PCB Mount Header ERNI PCB Headers
Product Overviews
234206-E PCB Connectors——PCB Mount Header, Vertical, Board-to-Board, 12 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC.
Specification
|
Connector Type
|
Header
|
|
Contact Type
|
Male Pin
|
|
Pitch - Mating
|
0.050" (1.27mm)
|
|
Number of Positions
|
12
|
|
Number of Rows
|
2
|
|
Row Spacing - Mating
|
0.050" (1.27mm)
|
|
Number of Positions Loaded
|
All
|
|
Style
|
Board to Board
|
|
Shrouding
|
Shrouded - 4 Wall
|
|
Mounting Type
|
Surface Mount
|
|
Termination
|
Solder
|
|
Fastening Type
|
Push-Pull
|
|
Contact Length - Mating
|
0.157" (4.00mm)
|
|
Insulation Height
|
0.388" (9.86mm)
|
|
Contact Shape
|
Square
|
|
Contact Finish - Mating
|
Gold
|
|
Contact Finish - Post
|
Tin
|
|
Contact Material
|
Copper Alloy
|
|
Insulation Material
|
Liquid Crystal Polymer (LCP)
|
|
Features
|
Board Guide, Pick and Place, Solder Retention
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Insulation Color
|
Black
|
|
Current Rating (Amps)
|
1.7A per Contact
|
|
Contact Finish Thickness - Post
|
157.5µin (4.00µm)
|
Configuration Features
Stackable :Yes
Connector Contact Load Condition :Fully Loaded
Stacking Configuration :Stack Through
Number of Loaded Positions :12
Number of Columns :6
Number of Positions :12
Number of Rows :2
PCB Mount Orientation :Vertical
Board-to-Board Configuration :Parallel
