제품 상세 정보:
|

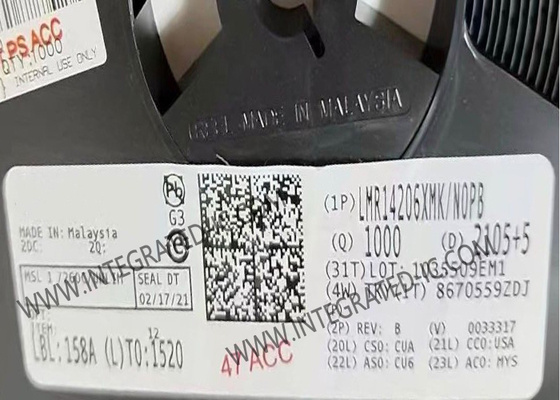

| 부품 번호: | LMR14206XMK | 출력 전압 :: | 34 Ｖ에 대한 765 mV |
|---|---|---|---|
| 출력 전류 :: | 600 마 | 출력 수 :: | 1 출력 |
| 입력 전압 - 최소 :: | 4.5 v | 입력 전압 - 최대 :: | 42 Ｖ |
| 강조하다: | LMR14206XMK step-down voltage regulator,600mA integrated circuit chip,1.25MHz step-down voltage regulator |
||
LMR14206XMK is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, they are suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the softstart time to a specific application.
| Function | Step-Down |
|---|---|
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 0.765V |
| Voltage - Output (Max) | 34V |
| Current - Output | 600mA |
| Frequency - Switching | 1.25MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
