제품 상세 정보:
|

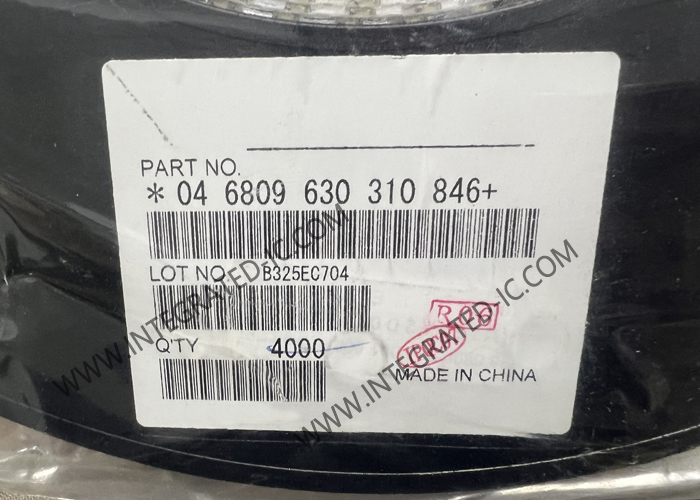

| 부품 번호: | 046809630310846+ | 시리즈: | 6809 |
|---|---|---|---|
| 평평한 플랙스 형: | FFC, FPC | 위치 수: | 30 |
| 전압 등급: | 50V | 작동 온도: | -40 ° C ~ 85 ° C |
| 강조하다: | 6809 Series FPC connectors,FFC flat flexible connectors,6809 Series FFC connectors |
||
046809630310846+ is 6809 Series FPC/FFC Connectors. The 6809 Series possess enhanced robustness after implementing measures aimed at reducing breakage of connectors caused by human error. These low profile products feature a pitch of 0.5mm, bottom contact, front flip type with a height of 0.93mm for mounting area, and can be applied to FPC/FFC thicknesses of 0.3mm.
046809630310846+ Suitable for smartphones, tablet PCs, laptops, audio equipment and industrial equipment etc.
| Part Number | 046809630310846+ |
|---|---|
| Pitch | 0.500mm |
| Connection Style | Right angle |
| Height | 0.93mm |
| Width | 3.75mm |
| Length | 17.37mm |
| No. of Positions | 30 |
| Lock Type | Front flip |
| Operating Temperature Range | -40℃ ~ 85℃ |
| Applicable FPC/FFC Thickness | 0.3mm |
| Rated Current(signal) | DC 0.5A |
| Rated Voltage | DC 50V |
| Withstanding Voltage | AC 200Vrms,1min. |
