제품 상세 정보:
|
| 부품 번호: | CDCLVP1204RGTR | 출력 수 :: | 4개 출력 |
|---|---|---|---|
| 최대 출력 freq :: | 2GHz | 전달 지연 - 맥스 :: | 450이지 추신 |
| 출력 유형 :: | lvpecl | 최대 입력 주파수:: | 2GHz |

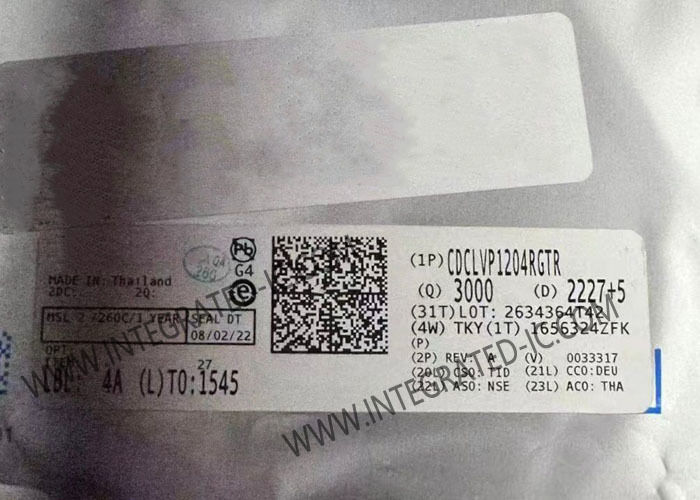

CDCLVP1204RGTR Integrated Circuit Chip Four LVPECL Output High-Performance Clock Buffer
Product Description Of CDCLVP1204RGTR
CDCLVP1204RGTR is a highly versatile, low additive jitter buffer that can generate four copies of LVPECL clock outputs from one of two selectable LVPECL, LVDS, or LVCMOS inputs for a variety of communication applications. It has a maximum clock frequency up to 2 GHz. The CDCLVP1204RGTR features an on-chip multiplexer (MUX) for selecting one of two inputs that can be easily configured solely through a control terminal. The overall additive jitter performance is less than 0.1 ps, RMS from 10 kHz to 20 MHz, and overall output skew is as low as 15 ps, making the device a perfect choice for use in demanding applications.
Specifications Of CDCLVP1204RGTR
|
Type
|
Fanout Buffer (Distribution), Multiplexer
|
|
Number of Circuits
|
1
|
|
Ratio - Input:Output
|
2:4
|
|
Differential - Input:Output
|
Yes/Yes
|
|
Input
|
LVCMOS, LVDS, LVPECL, LVTTL
|
|
Output
|
LVPECL
|
|
Frequency - Max
|
2 GHz
|
|
Voltage - Supply
|
2.375V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
Features Of CDCLVP1204RGTR
2:4 Differential Buffer
Selectable Clock Inputs Through Control Terminal
Universal Inputs Accept LVPECL, LVDS, and LVCMOS/LVTTL
Four LVPECL Outputs
Maximum Clock Frequency: 2 GHz
Maximum Core Current Consumption: 45 mA
Very Low Additive Jitter: <100 fs, RMS in 10-kHz to 20-MHz Offset Range:
57 fs, RMS (typical) at 122.88 MHz
48 fs, RMS (typical) at 156.25 MHz
30 fs, RMS (typical) at 312.5 MHz
2.375-V to 3.6-V Device Power Supply
Maximum Propagation Delay: 450 ps
Maximum Output Skew: 15 ps
LVPECL Reference Voltage, VAC_REF, Available for Capacitive-Coupled Inputs
Industrial Temperature Range: –40°C to +85°C
Supports 105°C PCB Temperature (Measured at Thermal Pad)
ESD Protection Exceeds 2 kV (HBM)
Applications Of CDCLVP1204RGTR
Wireless Communications
Telecommunications/Networking
Medical Imaging
Test and Measurement Equipment
