제품 상세 정보:
|
| 부품 번호: | CDCDB2000NPPT | 출력 수 :: | 20 출력 |
|---|---|---|---|
| 최대 출력 freq :: | 250 마하즈 | 전달 지연 - 맥스 :: | 3 나노 초 |
| 최대 입력 주파수:: | 250 마하즈 | 운영 공급 전류 :: | 12 MA |

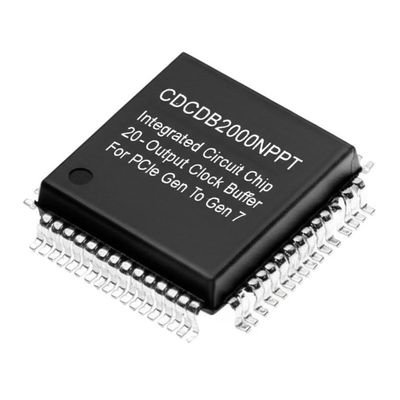

CDCDB2000NPPT Integrated Circuit Chip 20-Output Clock Buffer For PCIe Gen 1 To Gen 7
Product Description Of CDCDB2000NPPT
CDCDB2000NPPT is a 20-output LP-HCSL, DB2000QL compliant, clock buffer capable of distributing the reference clock for PCIe Gen 1-7, QuickPath Interconnect (QPI), UPI, SAS, and SATA interfaces. The SMBus, SBI, and 8 output enable pins allow the configuration and control of all 20 outputs individually. The CDCDB2000NPPT is a DB2000QL derivative buffer and meets or exceeds the system parameters in the DB2000QL specification. The CDCDB2000NPPT is packaged in a 6mm × 6mm TLGA/GQFN package with 80 leads.
Specifications Of CDCDB2000NPPT
|
Number of Circuits |
1 |
|
Ratio - Input:Output |
1:20 |
|
Differential - Input:Output |
Yes/Yes |
|
Input |
HCSL |
|
Output |
HCSL |
|
Frequency - Max |
250 MHz |
|
Voltage - Supply |
3.135V ~ 3.465V |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
Features Of CDCDB2000NPPT
20 LP-HCSL outputs with integrated 85Ω output terminations
8 hardware output enable (OE#) controls
Additive phase jitter after DB2000QL filter: < 0.08ps rms
Supports PCIe Gen 6 and Gen 7 Common Clock (CC) and Individual Reference (IR) architectures
Spread spectrum-compatible
Cycle-to-cycle jitter: < 50ps
Output-to-output skew: < 50ps
Input-to-output delay: < 3ns
3.3V core and IO supply voltages
Hardware-controlled low power mode (PD#)
Side-Band Interface (SBI) for output control in PD# mode
9 selectable SMBus addresses
Power consumption: < 600mW
6mm × 6mm, 80-pin TLGA/GQFN package
Applications Of CDCDB2000NPPT
Microserver and tower server
Storage area network and host bus adapter card
Network attached storage
Hardware accelerator
