제품 상세 정보:
|
| 부품 번호: | BTS5200-4EKA | 유형: | 높은 쪽 |
|---|---|---|---|
| 출력 전류: | 800 MA | 현재 한도: | 5.6A |
| 저항 - 맥스에: | 400 모엠에스 | 작동 공급 전압: | 28 Ｖ에 대한 5 Ｖ |

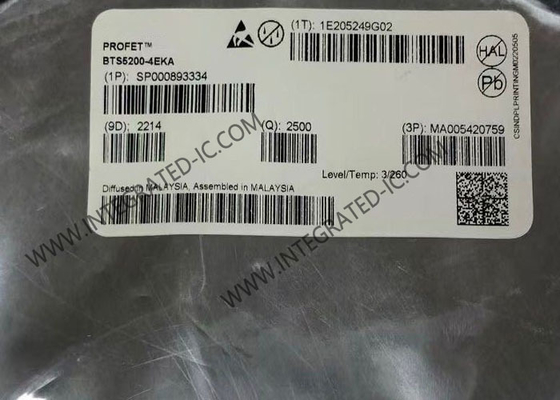

BTS5200-4EKA Integrated Circuit Chip Quad Channel Smart High-Side Switch PG-DSO-14
Product Description Of BTS5200-4EKA
BTS5200-4EKA is a 200 mΩ quad channel Smart High-Side Switch, embedded in a PG-DSO-14-48- EP, Exposed Pad package, with protective functions and diagnosis.
BTS5200-4EKA Power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to R5W, as well as LEDs in the harsh automotive environment.
Specification Of BTS5200-4EKA
|
Series
|
PROFET®
|
|
Switch Type
|
General Purpose
|
|
Number of Outputs
|
4
|
|
Ratio - Input:Output
|
1:1
|
|
Output Configuration
|
High Side
|
|
Output Type
|
N-Channel
|
|
Interface
|
Parallel
|
|
Voltage - Load
|
5V ~ 28V
|
|
Voltage - Supply (Vcc/Vdd)
|
Not Required
|
|
Current - Output (Max)
|
800mA
|
|
Rds On (Typ)
|
200mOhm
|
|
Input Type
|
Non-Inverting
|
|
Fault Protection
|
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-DSO-14-48-EP
|
|
Package / Case
|
14-SOIC (0.154", 3.90mm Width) Exposed Pad
|
Features Of BTS5200-4EKA
Quad channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground indep from load ground
Low power DMOS leakage I in OFF state
Applications Of BTS5200-4EKA
Automotive body control module (BCM)
Automotive battery management system (BMS) - high-voltage
EV traction inverter
On-board charging (OBC)
Domestic robots
