제품 상세 정보:
|
| 부품 번호: | LM5007MMX | 출력 전압: | 2.5 v ~ 73 v |
|---|---|---|---|
| 출력 전류: | 500 MA | 출력 수: | 1 출력 |
| 전환 주파수: | 800 킬로 헤르츠에 대한 50 킬로 헤르츠 | 유형: | 스텝 다운 전환 변환기 |

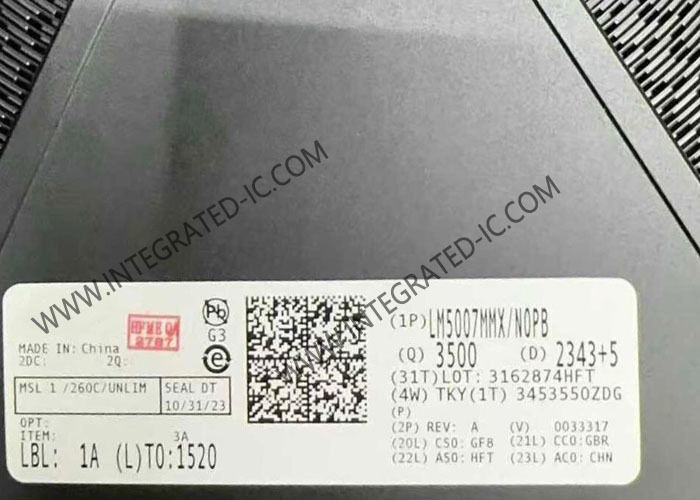

LM5007MMX Integrated Circuit Chip Buck Regulator 500mA Step-Down Switching Converter
Product Description Of LM5007MMX
LM5007MMX 0.5A step-down switching converter features all of the functions needed to implement a low-cost and efficient buck regulator. LM5007MMX high-voltage converter has an integrated 80-V, 0.7-A N-channel buck switch and operates over an input voltage range of 9 V to 75 V. The device is easy to implement and is provided in 8-pin VSSOP packages.
Specification Of LM5007MMX
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
9V
|
|
Voltage - Input (Max)
|
75V
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
Voltage - Output (Max)
|
73V
|
|
Current - Output
|
500mA
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
8-VSSOP
|
Features Of LM5007MMX
Versatile Synchronous Buck DC/DC Converter
– Operating Input Voltage Range of 9 V to 75 V
– Integrated 80-V, 0.7-A N-Channel Buck Switch
– Internal High-Voltage VCC Regulator
– Adjustable Output Voltage
– High Efficiency Operation
Adaptive Constant On-Time Control Architecture
– Ultra-Fast Transient Response
– No Control Loop Compensation Required
Nearly Constant Switching Frequency
– PWM On-Time Varies Inversely with Input Voltage
Precision 2.5-V Reference
Low Input Quiescent Current
Inherent Protection Features for Robust Design
– Intelligent Current Limit Protection
– VCC and Gate Drive UVLO Protection
– Thermal Shutdown Protection With Hysteresis
– External Shutdown Control
Applications Of LM5007MMX
Non-Isolated DC/DC Buck Regulator
Secondary High-Voltage Post Regulator
48-V Automotive Systems
