제품 상세 정보:
|
| 부품 번호: | MAX16895AALT+T | 전압 - 한계: | 0.5V |
|---|---|---|---|
| 전압의 수는 모니터링했습니다: | 1 | 패키지: | 6-µdfn |
| 크기: | 1.5mm x 1mm | 유형: | 전압 모니터링 회로 |
| 강조하다: | MAX16895AALT+T,MAX16895AALT+T Integrated Circuit Chip,μDFN6 Voltage-Monitoring Circuits |
||

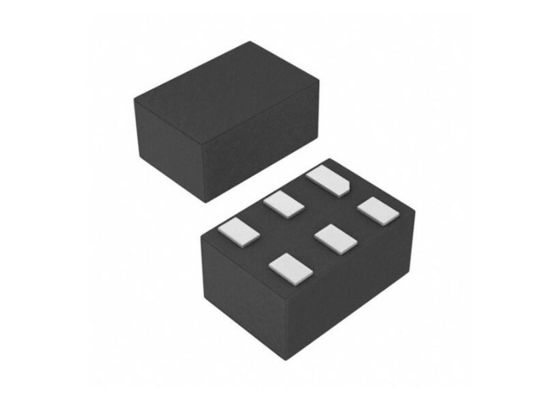

MAX16895AALT+T Integrated Circuit Chip Supervisory Circuits μDFN6 Voltage-Monitoring Circuits
Product Description Of MAX16895AALT+T
MAX16895AALT+T is a small, low power, voltage-monitoring circuits with sequencing capability. This miniature devices offer tremendous flexibility with an adjustable threshold capable of monitoring down to 0.5V and an external capacitor-adjustable time delay. MAX16895AALT+T is ideal for use in power-supply sequencing, reset sequencing, and power-switching applications. Multiple devices can be cascaded for complex sequencing applications.
Specification Of MAX16895AALT+T
|
Type
|
Sequencer
|
|
Number of Voltages Monitored
|
1
|
|
Voltage - Threshold
|
0.5V
|
|
Output
|
Push-Pull, Totem Pole
|
|
Reset
|
Active High
|
|
Reset Timeout
|
Adjustable/Selectable
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-WFDFN
|
|
Supplier Device Package
|
6-µDFN (1.5x1)
|
Features Of MAX16895AALT+T
1% Accurate Adjustable Threshold Over Temperature
Operate from VCC of 1.5V to 5.5V
Capacitor-Adjustable Delay
Active-High/Low Enable Input Options
Active-High/Low Output Options
Open-Drain (28V Tolerant)/Push-Pull Output Options
Low Supply Current (10μA, typ)
Fully Specified from -40°C to +125°C
Ultra-Small 6-Pin μDFN Package
Applications Of MAX16895AALT+T
Medical Equipment
Intelligent Instruments
Portable Equipment
Computers/Servers
Critical µP Monitoring
Set-Top Boxes
Telecom
Other Electronic Components In Stock
| Part Number | Package |
| IKN03N60RC2ATMA1 | TO-261-3 |
| IKN04N60RC2ATMA1 | TO-261-4 |
| IKD03N60RFATMA1 | TO-252-3 |
| IKD06N60RC2ATMA1 | TO-252-3 |
| IGB10N60TATMA1 | TO-263-3 |
| IKD15N60RFATMA1 | TO-252-3 |
| IKB20N60H3ATMA1 | TO-263-3 |
| IKB15N65EH5ATMA1 | TO-263-3 |
| IKB20N65EH5ATMA1 | TO-263-3 |
| IGB50N65H5ATMA1 | TO-263-3 |
| AIGB40N65H5ATMA1 | TO-263-3 |
| AIKB30N65DF5ATMA1 | TO-263-3 |
| AIGB50N65F5ATMA1 | TO-263-3 |
| IKB40N65EH5ATMA1 | TO-263-3 |
| AIKB40N65DH5ATMA1 | TO-263-3 |
| AUIRG4BC30SSTRL | TO-263-3 |
| IKA06N60TXKSA1 | TO-220-3 |
| IHW40N65R6XKSA1 | TO-247-3 |
| IKFW40N65ES5XKSA1 | TO-247-3 |
| IKFW60N65ES5XKSA1 | TO-247-3 |
| IKZA75N65RH5XKSA1 | TO-247-4 |
| IGB15N65S5ATMA1 | TO-263-3 |
| IGB15N60TATMA1 | TO-263-3 |
| IKW75N60TFKSA1 | TO-247-3 |
| IKQ75N120CS6XKSA1 | TO-247-3 |
| IKD10N60RATMA1 | TO-252-3 |
| AIGB50N65H5ATMA1 | TO-263-3 |
| IKP40N65F5XKSA1 | TO-220-3 |
| IKQ140N120CH7XKSA1 | TO-247-3 |
| IKB15N60TATMA1 | TO-263-3 |
