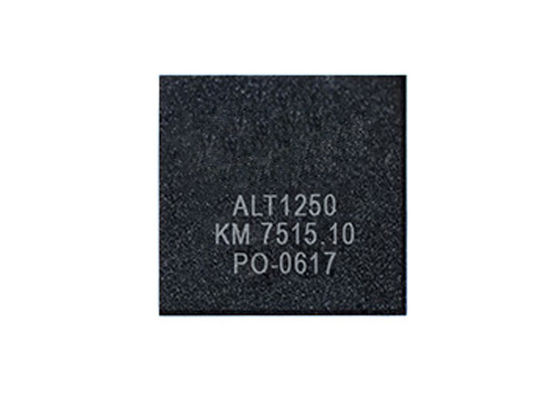

ALT1250 IoT Chip Altair Cellular IoT Chipset Dual Mode LTE-M/NB-IoT Modem WLCSP Package

ALT1250 IoT Chip Altair Cellular IoT Chipset Dual Mode LTE-M/NB-IoT Modem WLCSP Package​

Product Description Of ALT1250

ALT1250 is Altair Cellular IoT chipset——Ultra Low Power, Ultra Small, Most Secured and Highly Integrated dual mode LTE-M/NB-IoT modem.
ALT1250 modem is ideal for space-constrained applications. Its high level of integration and minimal required external components enables module sizes as small as 100mm², making it perfect for the smallest cellular IoT modules on the market.
With support for dual-mode LTE-M/NB-IoT, GNSS & cellular-based positioning, an integrated MCU, and an iSIM, the ALT1250 packs a punch without compromising on size.

Specification Of ALT1250

Tech Highlights Of ALT1250
LTE Radio Technology Support
- CAT-M1 R13 with DL/UL speeds of 300/375 Kbps
- CAT-M1 R14 with DL/UL speeds of 588/1119 Kbps
- CAT-NB1 R13 with DL/UL speeds of 27/65 Kbps
- CAT-NB2 R14 with DL/UL speeds of 127/158 Kbps
Highly Integrated SoC
- 6th generation Software Defined Radio architecture featuring maximum flexibility at extremely low power
- Integrated in-chip: LTE CAT-M1/NB1/NB2 modem with 2G fallback, GNSS, radio transceiver, PLL supporting TCXO inputs, PMU with voltage regulators and RTC
- Integrated ARM Cortex M4 MCU subsystem for customer developed applications
- Carrier grade integrated SIM (iSIM)
- Secure boot architecture and a robust hardware-based security framework
- Integrated voice processing for VoLTE and Voice Over-the-Top applications
- WLCSP packaging for low cost devices
Location Services
- Assisted GPS and GLONASS navigation systems are supported
- Cellular-based location

OneSKUTM
- Single hardware design supports multiple bands
- HD-FDD: 1, 2, 3, 4, 5, 8, 12, 13, 14, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85, 255
- HD-TDD: 33, 34, 35, 36, 37, 39
- Support for 410-467.5 MHz bands 31, 72, 73, 87, 88
- NTN: n255, n256
Interfaces
- UART, SPI, FS USB2.0, USIM or eUICC, I2S/PCM audio, GPIOs, I2C, Auxiliary ADC and PWM

Features Of ALT1250
Ultra-Low Power Consumption
Smallest Form Factor
Robust Security
Seamless Integration
