제품 상세 정보:
|
| 부품 번호: | QCN-5054-0-105DRQFN-MT-07-0 | 작동 온도 범위: | -40 ° C ~ 85 ° C |
|---|---|---|---|
| 공급 전압: | 1.8 3.3 Ｖ에 대한 Ｖ | 전력 소비: | 500MW |
| 주파수 범위: | 600MHz ~ 6GHz (5G NR), 700MHz ~ 2.7GHz (4G LTE) | 얻다: | 30dB |
| 강조하다: | QCN-5054-0-105DRQFN-MT-07-0,QCN-5054-0-105DRQFN-MT-07-0 Integrated Circuit Chip,Radio Frequency Front-End Chip |
||

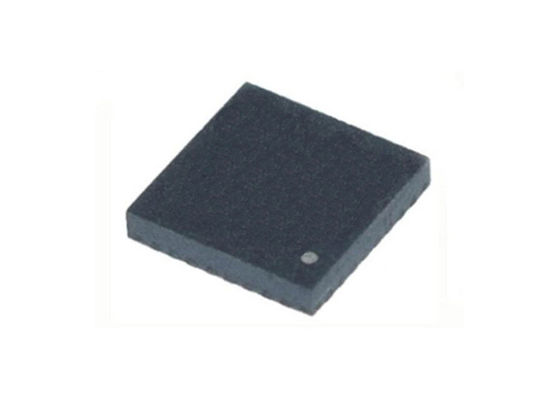

QCN-5054-0-105DRQFN-MT-07-0 Integrated Circuit Chip High-Performance Highly Integrated Radio Frequency Front-End Chip
Product Description Of QCN-5054-0-105DRQFN-MT-07-0
QCN-5054-0-105DRQFN-MT-07-0 is a highly integrated RFFE chip that supports 5G NR (New Radio) and 4G LTE (Long-Term Evolution) wireless communication standards. It is designed to provide a high level of performance, efficiency, and flexibility for a wide range of mobile devices, including smartphones, tablets, and laptops.
Features Of QCN-5054-0-105DRQFN-MT-07-0
Supports 5G NR and 4G LTE wireless communication standards
High-performance RFFE with low power consumption
Supports up to 100 MHz bandwidth for 5G NR and 20 MHz bandwidth for 4G LTE
Integrated low noise amplifier (LNA) and power amplifier (PA)
Supports multiple antenna configurations, including 2x2 and 4x4 MIMO
Compatible with Qualcomm%27s Snapdragon 5G and 4G LTE modems
Technical Specifications Of QCN-5054-0-105DRQFN-MT-07-0
Package type: 105-pin DRQFN (Dual Row Quad Flat No-Lead)
Package size: 5.5 mm x 5.5 mm x 0.5 mm
Operating temperature range: -40°C to 85°C
Storage temperature range: -40°C to 125°C
Supply voltage: 1.8 V to 3.3 V
Power consumption: up to 500 mW (typical)
Frequency range: 600 MHz to 6 GHz (5G NR), 700 MHz to 2.7 GHz (4G LTE)
Performance Characteristics Of QCN-5054-0-105DRQFN-MT-07-0
Gain: up to 30 dB (typical)
Noise figure: as low as 2 dB (typical)
Output power: up to 25 dBm (typical)
Linearity: up to 30 dBm (typical)
Efficiency: up to 40% (typical)
Applications Of QCN-5054-0-105DRQFN-MT-07-0
5G and 4G LTE smartphones and tablets
Laptops and mobile hotspots
IoT devices and wearables
Automotive and industrial applications
