제품 상세 정보:
|
| 부품 번호: | IPA65R660CFD | 트랜지스터 극성:: | n 채널 |
|---|---|---|---|
| Vds - 드레인 소스 항복 전압:: | 650 v | Id - 연속 드레인 전류:: | 6 A |
| Rds On - 드레인 소스 저항:: | 1.544 옴 | Vgs - 게이트 소스 전압:: | - 20 Ｖ, + 20 Ｖ |
| 강조하다: | IPA65R660CFD,IPA65R660CFD Integrated Circuit Chip,N-Channel Power MOSFET Transistors |
||

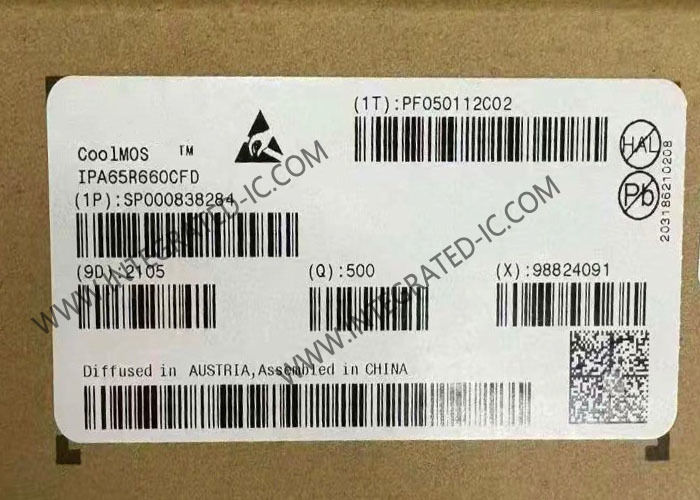

IPA65R660CFD Integrated Circuit Chip 650V CoolMOS™ CFD2 N-Channel Power MOSFET Transistors
Product Description Of IPA65R660CFD
IPA65R660CFD CoolMOS™ CFD2 is second generation of market leading high voltage CoolMOS™ MOSFETs with integrated fast body diode. The CFD2 devices are the successor of 600V CFD with improved energy efficiency. The softer commutation behavior and therefore better EMI behavior gives this product a clear advantage in comparison with competitor parts.
Specifications Of IPA65R660CFD
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
700 V |
|
Current - Continuous Drain (Id) @ 25°C |
6A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
660mOhm @ 2.1A, 10V |
|
Vgs(th) (Max) @ Id |
4.5V @ 200µA |
|
Gate Charge (Qg) (Max) @ Vgs |
22 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
615 pF @ 100 V |
|
Power Dissipation (Max) |
27.8W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
Features Of IPA65R660CFD
650V technology with integrated fast body diode
Limited voltage overshoot during hard commutation
Significant Qg reduction compared to 600V CFD technology
Tighter RDS(on) max to RDS(on) typ window
Easy to design-in
Lower price compared to 600V CFD technology
Benefits Of IPA65R660CFD
Low switching losses due to low Qrr at repetitive commutation on body diode
Self limiting di/dt and dv/dt
Low Qoss
Reduced turn on and turn of delay times
Outstanding CoolMOS™ quality
Applications Of IPA65R660CFD
650V CooMOSTM CFD2 is especially suitable for resonant switching PWM stages for e.g. PC Silverbox, LCD TV, Lighting, Server,Telecom, and Solar.
