제품 상세 정보:
|
| 부품 번호: | IRLR8743TRPBF | 트랜지스터 극성:: | n 채널 |
|---|---|---|---|
| 채널 수 :: | 1 채널 | Vds - 드레인 소스 항복 전압:: | 30V |
| Id - 연속 드레인 전류:: | 160 A | Rds On - 드레인 소스 저항:: | 3.9 MOhms |
| 강조하다: | IRLR8743TRPBF,IRLR8743TRPBF Integrated Circuit Chip,30V 160A Power MOSFET Transistors |
||

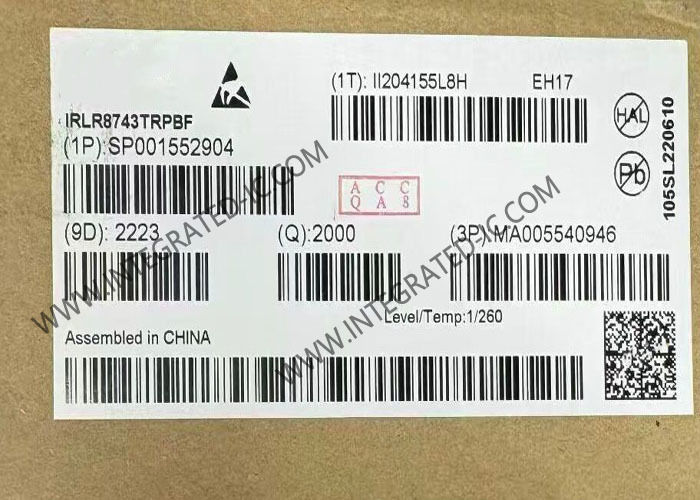

IRLR8743TRPBF Integrated Circuit Chip N-Channel 30V 160A Power MOSFET Transistors
Product Description Of IRLR8743TRPBF
IRLR8743TRPBF is N-Channel 30V 160A HEXFET Power MOSFET Transistors.
Specifications Of IRLR8743TRPBF
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
30 V |
|
Current - Continuous Drain (Id) @ 25°C |
160A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
3.1mOhm @ 25A, 10V |
|
Vgs(th) (Max) @ Id |
2.35V @ 100µA |
|
Gate Charge (Qg) (Max) @ Vgs |
59 nC @ 4.5 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
4880 pF @ 15 V |
|
Power Dissipation (Max) |
135W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
Benefits Of IRLR8743TRPBF
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
Applications Of IRLR8743TRPBF
High Frequency Synchronous Buck Converters for Computer Processor Power
High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Lead-Free
