제품 상세 정보:
|
| 부품 번호: | SPV1050TTR | 배터리 유형: | 리튬 이온 |
|---|---|---|---|
| 출력 전류: | 70 마 | 출력 전압: | 2.2 v ~ 5.3 v |
| 작동 공급 전압: | 75 mV ~ 18 v | PD- 전력 소산: | 1 Ｗ |
| 강조하다: | SPV1050TTR,SPV1050TTR Integrated Circuit Chip,Energy Harvester And Battery Charger |
||

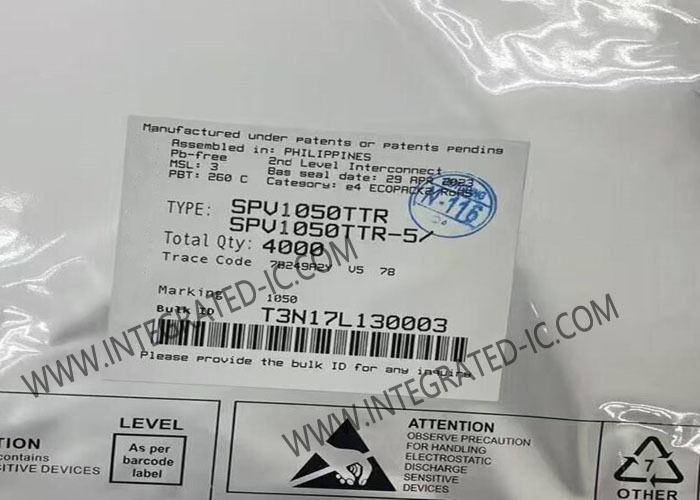

SPV1050TTR Integrated Circuit Chip Energy Harvester And Battery Charger VFQFPN20
Product Description Of SPV1050TTR
SPV1050TTR is Ultra low power energy harvester and battery charger with embedded MPPT and LDOs.
SPV1050TTR is an ultra-low power and high-efficiency power manager embedding four MOSFETs for boost or buck-boost DC-DC converter and an additional transistor for the load connection/disconnection. An internal high accuracy MPPT algorithm can be used to maximize the power extracted from PV panel or TEG.
Specification Of SPV1050TTR
|
Battery Chemistry
|
Multi-Chemistry
|
|
Current - Charging
|
Constant - Programmable
|
|
Charge Current - Max
|
70mA
|
|
Battery Pack Voltage
|
5.3V (Max)
|
|
Voltage - Supply (Max)
|
18V
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-VFQFN Exposed Pad
|
Features Of SPV1050TTR
Transformerless thermoelectric generators and PV modules energy harvester
High efficiency for any harvesting source
Up to 70 mA output current
Fully integrated MOSFETs for Boost or Buck-boost configurations
Selectable enable/disable MPPT functionality
Programmable MPPT by external resistors
2.6 V to 5.3 V trimmable output overvoltage level (± 1% accuracy)
2.2 V to 3.6 V trimmable output undervoltage level (± 1% accuracy)
Two fully independent LDOs (1.8 V and 3.3 V output)
Enable/disable LDO pins
Load disconnect function (by-pass transistor open) prior the first start-up (Cold Start) to avoid battery lifetime shortening
Battery Connected and DC-DC switching open drain indication pins
Applications Of SPV1050TTR
Internet of things
Remote control
Fleet and livestock tracking
Agriculture sensors
Toll-pay
Electronic labels
Smart watch and wearable
