제품 상세 정보:
|
| 부품 번호: | ISO7762FDBQR | 채널 수: | 6 채널 |
|---|---|---|---|
| 데이터 속도: | 100 Mb / Ｓ | 분리 전압: | 3000 브르엠에스 |
| 아이솔레이션형: | 정전 결합 | 전파 지연 시간: | 11 나노 초 |
| 강조하다: | ISO7762FDBQR,ISO7762FDBQR Integrated Circuit Chip,3000Vrms Six-Channel Digital Isolators |
||

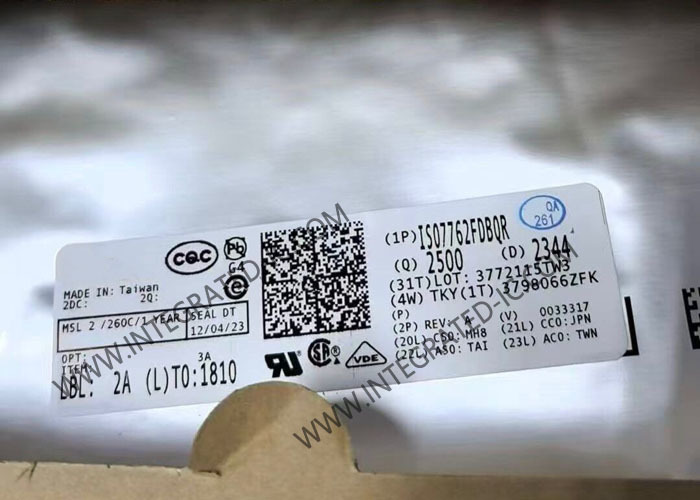

ISO7762FDBQR Integrated Circuit Chip 3000Vrms Six-Channel Digital Isolators SSOP16
Product Description Of ISO7762FDBQR
ISO7762FDBQR is high-performance, six-channel digital isolators with 3000-VRMS isolation ratings per UL 1577. ISO7762FDBQR provides high-electromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier.
Specification Of ISO7762FDBQR
|
Technology
|
Capacitive Coupling
|
|
Type
|
General Purpose
|
|
Isolated Power
|
No
|
|
Number of Channels
|
6
|
|
Inputs - Side 1/Side 2
|
4/2
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
3000Vrms
|
|
Common Mode Transient Immunity (Min)
|
85kV/µs
|
|
Data Rate
|
100Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
16ns, 16ns
|
|
Pulse Width Distortion (Max)
|
4.9ns
|
|
Rise / Fall Time (Typ)
|
1.1ns, 1.4ns
|
|
Voltage - Supply
|
2.25V ~ 5.5V
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SSOP (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
Features Of ISO7762FDBQR
100 Mbps data rate
Robust isolation barrier:
- >30-Year projected lifetime
- Up to 5000 VRMS isolation rating
- Up to 12.8 kV surge capability
- ±100 kV/µs Typical CMTI
Wide supply range: 2.25 V to 5.5 V
2.25-V to 5.5-V Level translation
Default output high (ISO776x) and low (ISO776xF) Options
Wide temperature range: –55°C to +125°C
Low power consumption, typical 1.4 mA per channel at 1 Mbps
Low propagation delay: 11 ns typical at 5 V
Applications Of ISO7762FDBQR
Industrial automation
Motor control
Power supplies
Solar inverters
Medical equipment
