제품 상세 정보:
|
| 부품 번호: | IPA057N06N3G | Vds - 드레인-소스 항복 전압: | 60 Ｖ |
|---|---|---|---|
| Id - 연속배수 경향: | 60 a | Rds에 - 드레인-소스 저항: | 4.6mΩ |
| 큐그 - 게이트전하: | 82nC | PD- 전력 소산: | 38W |

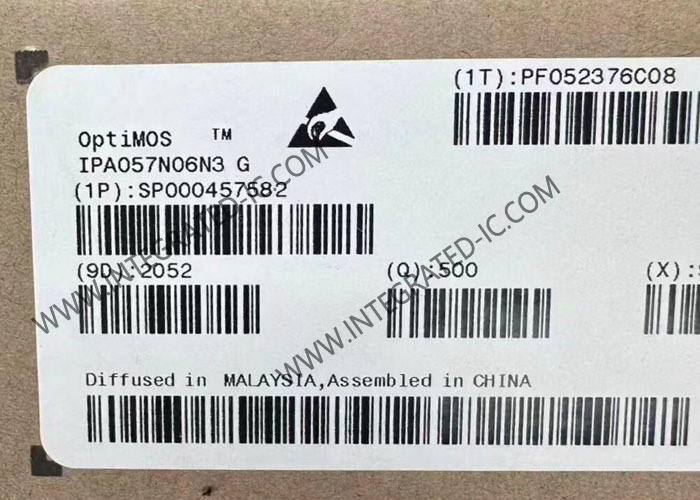

IPA057N06N3G Integrated Circuit Chip MOSFET Transistor 60V OptiMOS 3 Power Transistors
Product Description Of IPA057N06N3G
IPA057N06N3G is 60V, OptiMOS™-3 N-Channel Power MOSFET Transistors in PG-TO220-3 package. The OptiMOS™ 60V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices can be used for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.
Specification Of IPA057N06N3G
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
60A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
5.7mOhm @ 60A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 58µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
82 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
6600 pF @ 30 V
|
|
Power Dissipation (Max)
|
38W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
PG-TO220-3-31
|
|
Package / Case
|
TO-220-3 Full Pack
|
Features Of IPA057N06N3G
Excellent gate charge x RDS(on) product (FOM)
Very low on-resistance RDS(on)
Ideal for fast switching applications
RoHS compliant - halogen free
MSL1 rated
Highest system efficiency
Less paralleling required
Increased power density
System cost reduction
Very low voltage overshoot
Applications Of IPA057N06N3G
Industrial Applications
- Motor Control
- Solar Micro Inverter
- Fast Switching DC-DC Converter
