제품 상세 정보:
|
| 부품 번호: | DZ1070N18K | Vr - 역전압:: | 1.8 kV |
|---|---|---|---|
| 게이트 트리거 전류 - Igt:: | 150 MA | 출력 전류 :: | 1.7kA |
| 일반적인 지연 시간:: | 우리 190명 | 단위 중량 :: | 2.529kg |
| 강조하다: | 1800V Automotive IGBT Module,1100A Single Rectifier Diode Module,48V Intermediate Bus Converter Power Block Module |
||

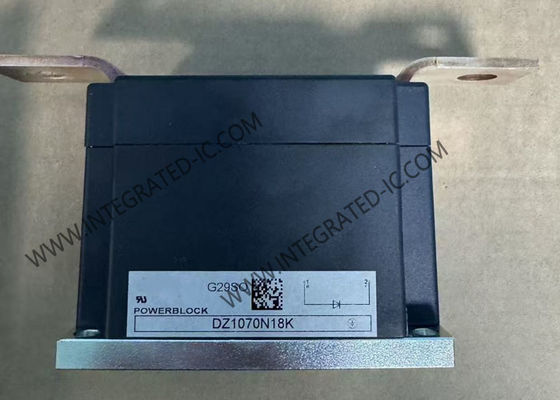

The DZ1070N18K is a high-performance single rectifier diode module featuring 1800V voltage rating and 1100A current capacity. This 70mm power block module utilizes reliable pressure contact technology with an isolated copper base plate for superior performance in demanding applications.
| Parameter | Value |
|---|---|
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Current - Average Rectified (Io) | 1100A |
| Voltage - Forward (Vf) (Max) @ If | 1.11 V @ 3000 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 150 mA @ 1800 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Part Number | Package |
|---|---|
| 2ED2101S06F | DSO-8 |
| TDA21590 | QFN-39 |
| 2EDN7533R | TSSOP-8 |
| 1ED3461MC12M | DSO-16 |
| 2EDN7434R | TSSOP-8 |
| 2ED21094S06J | DSO-14 |
| TLE9180D31QK | LQFP-64 |
| TLE75004EPD | TSDSO-14 |
| 1EDI2010AS | DSO-36 |
| 1EDN7512G | WSON-6 |
