제품 상세 정보:
|
| 부품 번호: | PSAS5M2130121TR | 현재 등급: | 1.5A |
|---|---|---|---|
| 작동 온도 범위: | +105' Ｃ에 대한 -55' Ｃ | 저항(절연): | 1000MΩ |
| 전압 정격: | 30V | 데이터 속도: | 32Gb/s |

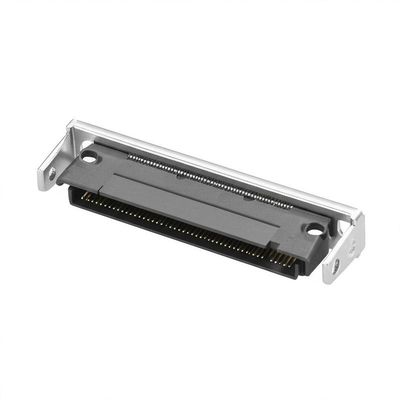

| 강조하다: | 68POS PCIe/SAS Connector,32Gb/s Data Rate PCIe/SAS Connector,1.5A Current Rating PCIe/SAS Connector |
||
| Specification | Value |
|---|---|
| Contacts | 68 |
| Rows | 2 |
| Color - Housing | Black |
| Connector Type | Dual Row |
| Current Rating | 1.5A |
| Current Rating (Power) | 1.5A/Contact |
| Current Rating (Signal) | 0.5A/Contact |
| Data Rate | 32Gb/s |
| Dielectric Withstanding Voltage | 500V AC rms |
| Differential Impedance | 85Ω |
| Durability (Mating cycles) | 500 |
| Gender | Header |
| Hold Down | SMT Holdown |
| Locating Pegs | Plastic peg |
| Material Contact | Copper Alloy |
| Material Housing | High Temperature Black Thermoplastic |
| Number of Channels | 6 |
| Number of Signal Pairs | 8 or 12 |
| Operating Temperature Range | -55°C to +105°C |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| PCB Thickness | 0.80mm (0.031in) |
| Pitch | 0.80mm (0.031in)|1.27mm (0.050in) |
| Plating Contact area | 0.76μm (30μin) Gold |
| Ports | 1 |
| Product Compliance/Standards | SFF 8639 |
| Product Series | PSAS |
| Resistance (Contact) | 30mΩ |
| Resistance (Insulation) | 1000MΩ |
| Retention Feature | Fork Lock/Harpoon |
| Tail Plating | Matte Tin |
| Termination Style | Surface Mount |
| UL file number | E232356 |
| Vacuum Pick-up Cap | Yes |
| Voltage Rating | 30V |
