제품 상세 정보:
|
| 부품 번호: | BSC320N20NS3G | Vds - 드레인 소스 항복 전압:: | 200 Ｖ |
|---|---|---|---|
| Id - 연속 드레인 전류:: | 36 A | Rds On - 드레인 소스 저항:: | 32m옴 |
| Vgs - 게이트 소스 전압:: | - 20 Ｖ, + 20 Ｖ | Vgs th - 게이트 소스 임계 전압:: | 4V |
| 강조하다: | 200V Drain-Source Breakdown Voltage Power MOSFET Transistor,36A Continuous Drain Current Integrated Circuit Chip,32 mOhms Drain-Source Resistance OptiMOS™ MOSFET |
||

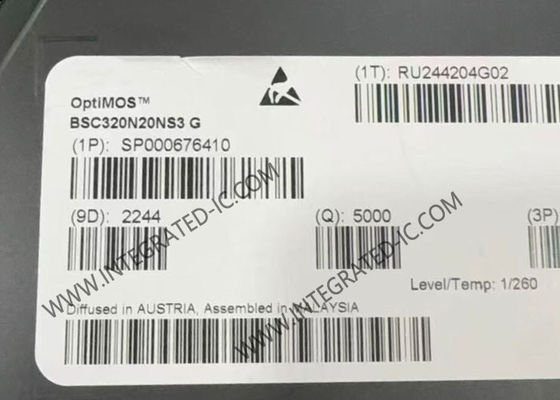

BSC320N20NS3G 200V OptiMOS™ products are performance-leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems, DC-DC converters, uninterruptible power supplies (UPS), and inverters for DC motor drives.
| FET Type | N-Channel |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 36A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2350 pF @ 100 V |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Part Number | Package |
|---|---|
| AGFA019R24C2E3E | FBGA-2340 |
| AGFA019R24C2E3V | FBGA-2340 |
| AGFA019R24C2I3E | FBGA-2340 |
| AGFA019R31C2E1VB | FBGA-3184 |
| AGFA019R25A3E4X | FBGA-2581 |
| AGFA019R31C3E3E | FBGA-3184 |
| AGFA019R25A2E2V | FBGA-2581 |
| AGFA019R25A2E4F | FBGA-2581 |
| AGFA019R31C2E2V | FBGA-3184 |
| AGFA019R31C2I2V | FBGA-3184 |
| AGFA019R24C2I2V | FBGA-2340 |
| AGFA019R24C2I3V | FBGA-2340 |
| AGFA019R31C2E3V | FBGA-3184 |
| AGFA019R31C2E3E | FBGA-3184 |
| AGFA019R31C2I3E | FBGA-3184 |
| AGFA019R31C3I3E | FBGA-3184 |
| AGFA019R24C2I2VB | FBGA-2340 |
| AGFA019R24C3E3V | BGA-2340 |
| AGFA019R24C2E4X | BGA-2340 |
| AGFA019R24C2I1VB | BGA-2340 |
| AGFA019R24C3I3E | BGA-2340 |
| AGFA019R25A1I1V | FBGA-2581 |
| AGFA019R25A1E1V | FBGA-2581 |
| AGFA022R24C2E1V | FBGA-2340 |
| AGFA022R24C2E3E | FBGA-2340 |
| AGFA022R24C2E4X | FBGA-2340 |
| AGFA022R24C2I3V | FBGA-2340 |
| AGFA022R31C3E4X | FBGA-3184 |
| AGFA022R24C2E1VB | BGA-2340 |
| AGFA022R25A1I1V | FBGA-2581 |
A: Yes, all products are original, new original import is our purpose.
A: We are ISO 9001:2015 Certified Company and member of ERAI.
A: Yes, we support sample order and small order. Sample cost is different according to your order or project.
A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
