제품 상세 정보:
|
| 부품 번호: | 7447709102 | 인덕턴스: | 1 mH |
|---|---|---|---|
| 용인: | 20% | 최대 DC 경향: | 900 MA |
| 포화 전류: | 1 a | 자기 공명 주파수: | 1 마하즈 |
| 강조하다: | 1 mH Inductance Wirewound Inductor,900mA Maximum DC Current Shielded Drum Core,Shielded Wirewound Inductor |
||

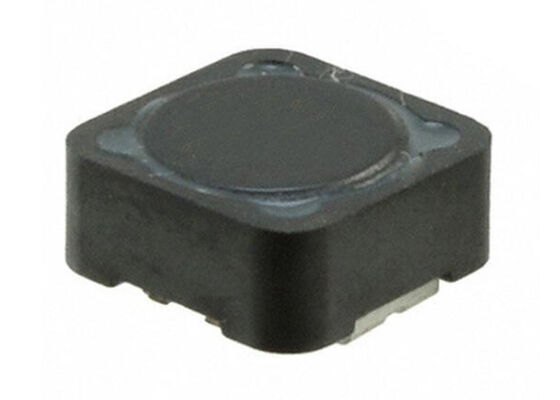

7447709102 is a 1 mH Shielded Drum Core, 900mA WE-PD series Wirewound Inductor with 1.2Ohm Max Nonstandard resistance. The operating ambient temperature range for the WE-PD series of storage chokes at full current rating load is -40°C to +85°C.
| Type | Drum Core, Wirewound |
|---|---|
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.2Ohm Max |
| Frequency - Self Resonant | 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
