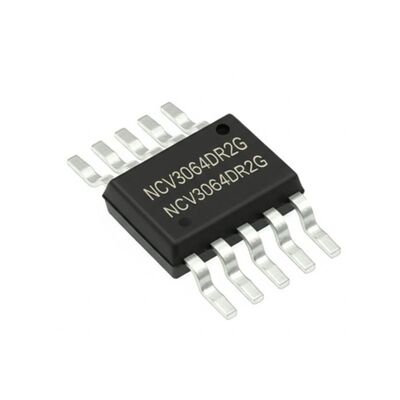

NCV3064DR2G Integrated Circuit Chip 1.5A Buck Boost Switching Regulator With On/Off Function
The NCV3064DR2G Buck Boost Inverting Switching Regulator is a higher frequency upgrade to the popular MC33063A and MC34063A monolithic DC-DC hysteretic converters. This integrated circuit features an internal temperature compensated reference, comparator, controlled duty cycle oscillator with active current limit circuit, driver, and high current output switch. Designed for step-down (buck), step-up (boost), and voltage-inverting applications with minimal external components, it includes an ON/OFF function that puts the device into a low power (<100μA) standby state.
Specifications
| Function |
Step-Up, Step-Down |
| Output Configuration |
Positive or Negative |
| Topology |
Buck, Boost |
| Output Type |
Adjustable |
| Number of Outputs |
1 |
| Voltage - Input (Min) |
3V |
| Voltage - Input (Max) |
40V |
| Voltage - Output (Min/Fixed) |
1.25V |
| Voltage - Output (Max) |
40V |
| Current - Output |
1.5A (Switch) |
| Frequency - Switching |
150kHz |
| Synchronous Rectifier |
No |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
Key Features
- Operation up to 40V Input
- Frequency operation up to 150kHz (250kHz if used as a controller)
- Internal thermal shutdown with hysteresis
- Cycle-by-cycle current limiting
- Low power standby mode (<100μA)
Applications
- NCV3064 available for automotive applications
- Cigarette Lighter Adapter (CLA)
Related Product Types
| Part Number |
Package |
| HMC903LP3ETR |
16-VFQFN |
| HMC633LC4TR |
24-TFCQFN |
| A5G26H605W19NR3 |
OM−780−4S4S |
| MMW9002KC |
56-WLCSP |
| MMW9004KC |
56-WLCSP |
| MMW9014KZ |
182-HUBGA |
| WLAN7001CZ |
10-XFDFN |
| WLAN7102C |
16-HWFLGA |
| MRF13750HR5 |
NI-1230-4H |
| MRF13750HSR5 |
NI-1230-4S |
| TEF8221EN1 |
WFBGA165 |
| TEF8222EN1 |
WFBGA165 |
| TEF8101EN |
WFBGA155 |
| SJA1105PELY |
159-LFBGA |
| SJA1105QELY |
159-LFBGA |
| SJA1105RELY |
LFBGA159 |
| SJA1105SELY |
159-LFBGA |
| CBTU02044HEJ |
16-UFQFN |
| PTN36043ABXY |
18-XFQFN |
| PTN36502AHQX |
24-HX2QFN |
| S912ZVMAL3F0MLC |
32-LQFP |
| S912ZVMAL3F0MLF |
48-LQFP |
| S912ZVMAL3F0WLF |
48-LQFP |
| S912ZVMBA4F0VLH |
64-LQFP |
| MIMX9352CVUXMAA |
LFBGA306 |
| LPC802M001JDH16 |
16-TSSOP |
| LPC802M011JDH20 |
20-TSSOP |
| MIMX9352XVVXMAB |
MAPBGA-404 |
| MIMX9352XVUXMAA |
256FBGA |
| MIMX9351XVUXMAA |
256-FPBGA |
