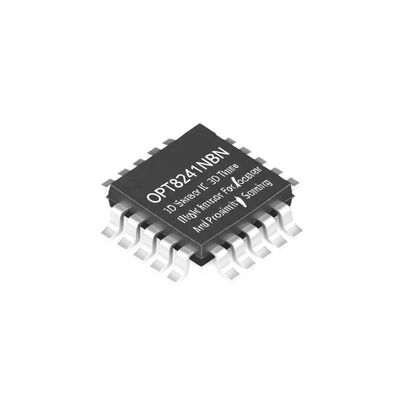

OPT8241NBN 3D Time-of-Flight Image Sensor
High-resolution QVGA (320 x 240) 3D Time-of-Flight sensor for location and proximity sensing applications with frame rates up to 150 FPS.
Product Overview
The OPT8241NBN time-of-flight (ToF) sensor integrates ToF sensing with an optimized analog-to-digital converter (ADC) and a versatile, programmable timing generator (TG). The device delivers quarter video graphics array (QVGA 320 x 240) resolution data at frame rates up to 150 frames per second (600 readouts per second).
Specifications
| Type |
3D Time of Flight |
| Active Pixel Array |
320H x 240V |
| Frames per Second |
150.0 |
| Voltage Supply |
1.5V ~ 3.3V |
Key Features
- Imaging Array: 320 x 240 Array, 1/3" Optical Format, Pixel Pitch: 15 μm, Up to 150 Frames per Second
- Optical Properties: Responsivity: 0.35 A/W at 850 nm, Demodulation Contrast: 45% at 50 MHz, Demodulation Frequency: 10 MHz to 100 MHz
- Output Data Format: 12-Bit Phase Correlation Data, 4-Bit Common-Mode (Ambient)
- Chipset Interface: Compatible with TI's Time-of-Flight Controller OPT9221
- Sensor Output Interface: CMOS Data Interface (50-MHz DDR, 16-Lane Data, Clock and Frame Markers), LVDS: 600 Mbps, 3 Data Pairs, 1-LVDS Bit Clock Pair, 1-LVDS Sample Clock Pair
- Timing Generator (TG): Addressing Engine with Programmable Region of Interest (ROI), Modulation Control, De-Aliasing, Master/Slave Sync Operation, I2C Slave Interface for Control
- Power Supply: 3.3-V I/O: Analog, 1.8-V Analog, Digital, I/O, 1.5-V Demodulation (Typical)
- Optimized Optical Package (COG-78): 8.757 mm * 7.859 mm * 0.7 mm, Integrated Optical Band-Pass Filter (830 nm to 867 nm), Optical Fiducials for Easy Alignment
- Operating Temperature: 0°C to 70°C
Applications
- Location and Proximity Sensing
- 3D Scanning
- 3D Machine Vision
- Security and Surveillance
- Gesture Controls
- Augmented and Virtual Reality
