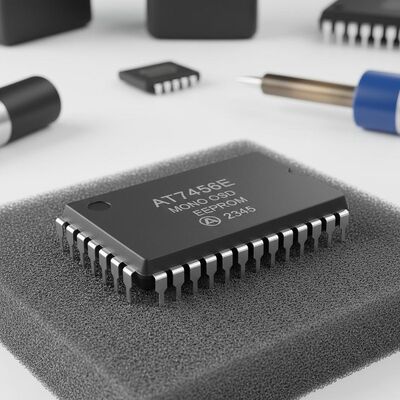

AT7456E Integrated Circuit Chip Single-Channel Monochrome On-Screen Display With Integrated EEPROM
The AT7456E is a single-channel, monochrome on-screen display generator with integrated EEPROM. This advanced IC incorporates a video driver, synchronization separator, video switch and EEPROM, enhancing system integration while effectively reducing overall system costs. The AT7456E supports 512 user-programmable characters compliant with both NTSC and PAL standards, making it suitable for global market applications. Pre-loaded with 512 characters and graphics, the device can be programmed in-system via an SPI-compatible serial interface. Available in a 28-pin TSSOP package, the AT7456E operates within an industrial temperature range of -40°C to +85°C.
Key Features
- 512 user-defined characters or graphics stored in EEPROM
- Character size: 12 * 18 pixels
- Flicker, color inversion and background control for characters
- Per-line brightness adjustment capability
- Displays up to 16 rows * 30 columns of characters
- Video driver outputs with attenuation compensation
- LOS, VSYNC, HSYNC and clock outputs
- Built-in synchronization generator with external composite synchronization signal support
- Compatible with NTSC and PAL standards
- SPI-compatible serial interface
- Pre-programmed character sets included at factory
Applications
Security surveillance systems • Security surveillance cameras • Industrial monitoring • Home entertainment systems • Handheld measuring instruments • Consumer electronics
