제품 상세 정보:
|
| 부품 번호: | UCC5350MCDR | Pd - 전력 손실: | 1.14 Ｗ |
|---|---|---|---|
| 전파 지연 - 최대: | 100 나노 초 | 작동 공급 전류: | 1.67 MA |
| 출력 전압: | 13.2V ~ 33V | 작동 온도: | -40 ° C ~ 125 ° C |

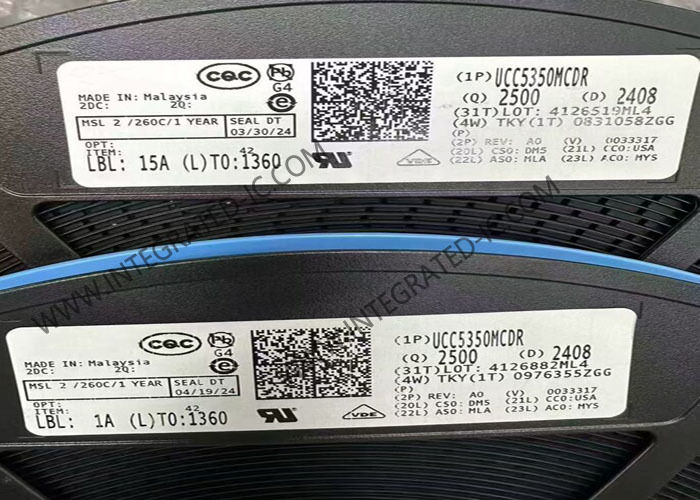

UCC5350MCDR Integrated Circuit Chip 5A Single-Channel Isolated Gate Drivers SOIC-8
Product Description Of UCC5350MCDR
UCC5350MCDR is a single-channel isolated gate driver designed specifically to drive MOSFETs, IGBTs and SiC/GaN power devices. Featuring 3 kVrms isolation, ±5 A peak drive current and Miller clamping, it is suitable for high-voltage isolation applications such as industrial power supplies, motor drives and photovoltaic inverters.
Specification Of UCC5350MCDR
|
Number of Channels
|
1
|
|
Voltage - Isolation
|
3000Vrms
|
|
Common Mode Transient Immunity (Min)
|
100kV/µs
|
|
Propagation Delay tpLH / tpHL (Max)
|
65ns, 65ns
|
|
Pulse Width Distortion (Max)
|
20ns
|
|
Rise / Fall Time (Typ)
|
10ns, 10ns
|
|
Current - Output High, Low
|
5A, 5A
|
|
Voltage - Output Supply
|
13.2V ~ 33V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Approval Agency
|
CQC, CSA, UR, VDE
|
Features Of UCC5350MCDR
• Miller clamp option
• 8-pin D (4mm creepage) package
• 60ns (typical) propagation delay
• 100kV/μs minimum CMTI
• Isolation barrier life > 40 Years
• 3V to 15V input supply voltage
• Up to 33V driver supply voltage
– 8V and 12V UVLO options
• Negative 5V handling capability on input pins
• CMOS inputs
• Operating temperature: –40°C to +125°C
Applications Of UCC5350MCDR
• Motor drives
• High voltage DC-to-DC converters
• UPS and PSU
• HEV and EV power modules
• Solar inverters
