제품 상세 정보:
|
| 부품 번호: | LT3008IDC | 출력 전압: | 600mV ~ 44.5V |
|---|---|---|---|
| 출력 전류: | 20 MA | 정지 전류: | 3 uA |
| PSRR / 리플 배제율 - Typ: | 70 DB (데시벨) | 드룹아웃 전압: | 300 mV |

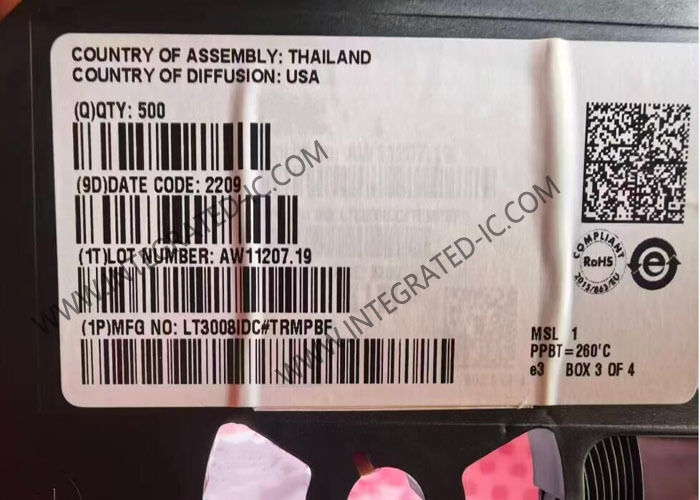

LT3008IDC Integrated Circuit Chip 20mA 45V Low Dropout Linear Regulators DFN-6
Product Description Of LT3008IDC
LT3008IDC is micropower, low dropout voltage (LDO) linear regulators. The devices supply 20mA output current with a dropout voltage of 300mV. No-load quiescent current is 3μA. Ground pin current remains at less than 5% of output current as load increases. In shutdown, quiescent current is less than 1μA.
LT3008IDC regulators optimize stability and transient response with low ESR ceramic capacitors, requiring a minimum of only 2.2μF. The regulators do not require the addition of ESR as is common with other regulators. Internal protection circuitry includes current limiting, thermal limiting, reverse-battery protection and reverse current protection.
Specification Of LT3008IDC
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
45V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
44.5V
|
|
Voltage Dropout (Max)
|
0.5V @ 20mA
|
|
Current - Output
|
20mA
|
|
Current - Quiescent (Iq)
|
6 µA
|
|
Current - Supply (Max)
|
1.2 mA
|
|
PSRR
|
70dB (120Hz)
|
|
Control Features
|
Enable
|
|
Protection Features
|
Over Current, Over Temperature, Reverse Polarity
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-WFDFN Exposed Pad
|
|
Supplier Device Package
|
6-DFN (2x2)
|
Features Of LT3008IDC
Ultralow Quiescent Current: 3μA
Input Voltage Range: 2.0V to 45V
Output Current: 20mA
Dropout Voltage: 300mV
Adjustable Output (VADJ = VOUT(MIN) = 600mV)
Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
Output Tolerance: ±2% Over Load, Line and Temperature
Stable with Low ESR, Ceramic Output Capacitors (2.2μF Minimum)
Shutdown Current: <1μA
Current Limit Protection
Reverse-Battery Protection
Thermal Limit Protection
TSOT-23 and 2mm × 2mm DFN Packages
Applications Of LT3008IDC
Automotive
Low Current Battery-Powered Systems
Keep-Alive Power Supplies
Remote Monitoring
Utility Meters
Low Power Industrial Applications
