제품 상세 정보:
|
| 부품 번호: | TLE8201R | 작동 공급 전류: | 3 uA |
|---|---|---|---|
| 인터페이스: | SPI | 전압 - 공급: | 4.75V ~ 5.5V |
| 전압 - 부하: | 5V ~ 40V | 작동 온도: | -40 ° C ~ 150 ° C (TJ) |

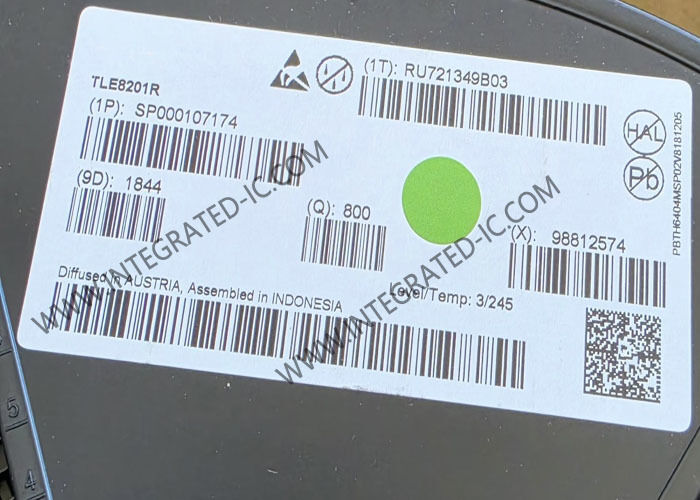

TLE8201R Integrated Circuit Chip Automotive Door Module Power IC PG-DSO-36
Product Description Of TLE8201R
TLE8201R is an Application Specific Standard Product for automotive door-module applications. It includes all the power stages necessary to drive the loads in a typical front door application, i.e. central lock, deadlock or mirror fold, mirror position, mirror defrost and 5W or 10W lamps, e.g for turn signal, courtesy/warning or control panel illumination. It is designed as a monolithic circuit in Infineons mixed technology SPT which combines bipolar and CMOS control circuitry with DMOS power devices.
Specification Of TLE8201R
|
Series
|
SPT®
|
|
Motor Type - AC, DC
|
Brushed DC
|
|
Function
|
Driver - Fully Integrated, Control and Power Stage
|
|
Output Configuration
|
Half Bridge (6), High Side (5)
|
|
Interface
|
SPI
|
|
Technology
|
DMOS
|
|
Voltage - Supply
|
4.75V ~ 5.5V
|
|
Voltage - Load
|
5V ~ 40V
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
36-BSSOP (0.433", 11.00mm Width) Exposed Pad
|
|
Supplier Device Package
|
PG-DSO-36-27
|
Features Of TLE8201R
• Full bridge (150mΩ) for main doorlock motor
• Two half-bridges (400mΩ) for deadbolt and mirror position motor or mirror fold motor
• Two half-bridges (800mΩ) for mirror position
• High-side switch (100mΩ) for mirror defrost
• Four high-side switches (500mΩ) for 5W and 10W lamps
• Current sense analog output with multiplex
• All outputs with short circuit protection and diagnosis
• Over-temperature protection with warning
• Open load diagnosis for all outputs
• Charge pump-Output for n-channel MOS-FET reverse-polarity protection
• Very low current consumption in sleep mode
• Standard 16-bit SPI for control and diagnosis
• Over-and Undervoltage Lockout
• Power-SO package with full-size heatslug for excellent low thermal resistance
