제품 상세 정보:
|
| 부품 번호: | HMC3716LP4ETR | 빈도: | 10MHz ~ 1.3GHz |
|---|---|---|---|
| 입력 범위: | -10dBm ~ 5dBm | 전압 - 공급: | 5V |
| 현재 - 공급: | 115 마 | 장착 유형: | 표면 실장 |

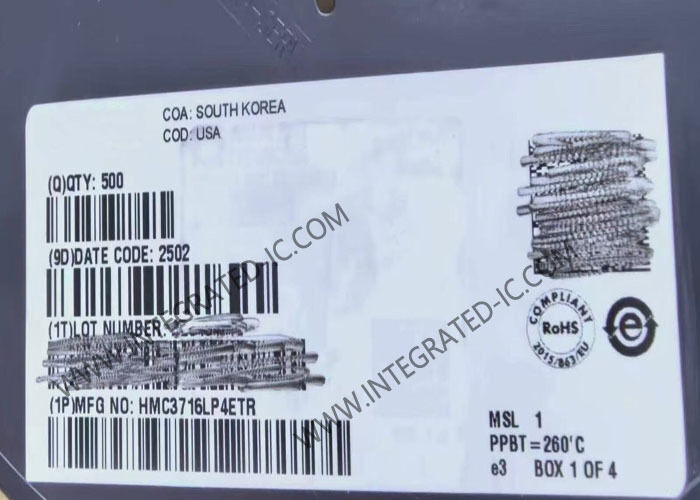

HMC3716LP4ETR Integrated Circuit Chip 10MHz To 1300MHz HBT Digital Phase Frequency Detector
Product Description Of HMC3716LP4ETR
HMC3716LP4ETR is a digital phase frequency detector which operates from 10 to 1300MHz. It is intended for use in low phase noise synthesizer applications.
The combination of high frequency of operation along with its ultra low phase noise floor make possible synthesizers with wide loop bandwidth and low N resulting in fast switching and very low phase noise. When used in conjunction with a differential loop amplifier, the HMC3716LP4ETR generates output voltages that can be used to phase lock a VCO to a reference oscillator.
Specifications Of HMC3716LP4ETR
|
Frequency
|
10MHz ~ 1.3GHz
|
|
Input Range
|
-10dBm ~ 5dBm
|
|
Voltage - Supply
|
5V
|
|
Current - Supply
|
115 mA
|
Features Of HMC3716LP4ETR
Ultra low SSB phase noise floor: -153dBc/Hz at 10kHz offset at 100MHz
Integrated output resistors
Improved input sensitivity
Lock detect and invert functionality
24-pin 4 x 4mm SMT package
Applications Of HMC3716LP4ETR
Point-to-point radios
Satellite communication systems
Sonet clock generation
