제품 상세 정보:
|
| 부품 번호: | OPA656NB/250 | 회로 수: | 1 |
|---|---|---|---|
| 슬림 속도: | 295V/µs | 이득 대역폭 제품: | 230 마하즈 |
| -3db 대역폭: | 500MHz | 경향 - 입력 바이어스: | 1 pA |

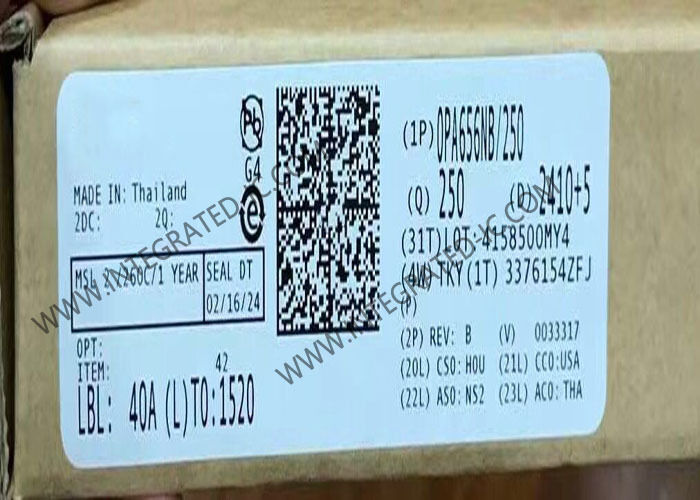

OPA656NB/250 Integrated Circuit Chip Wideband Unity Gain Stable FET-Input Operational Amplifier
Product Description Of OPA656NB/250
OPA656NB/250 combines a wideband, unity-gain stable, voltage-feedback operational amplifier with a low-noise junction gate field-effect transistor (JFET) input stage to offer an ultra high dynamic-range amplifier for transimpedance applications and high-speed data acquisition front-ends. Extremely low dc errors give good precision in both optical applications and test and measurement.
Specification Of OPA656NB/250
|
Slew Rate
|
295V/µs
|
|
Gain Bandwidth Product
|
230 MHz
|
|
-3db Bandwidth
|
500 MHz
|
|
Current - Input Bias
|
1 pA
|
|
Voltage - Input Offset
|
250 µV
|
|
Current - Supply
|
14mA
|
|
Current - Output / Channel
|
70 mA
|
|
Voltage - Supply Span (Min)
|
8 V
|
|
Voltage - Supply Span (Max)
|
12 V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
Features Of OPA656NB/250
Wide bandwidth:
Gain-bandwidth product: 230MHz
Unity-gain bandwidth: 550MHz
Large-signal bandwidth (2VPP): 150MHz
High precision:
Input offset voltage: 600µV (maximum)
Input offset voltage drift: 6µV/°C (maximum)
Input voltage noise: 6nV/√Hz
Input bias current: 2pA
Low distortion (RL = 200Ω, VO = 2VPP):
HD2, HD3 at 5MHz: –80dBc, –100dBc
Supply range: 8V to 12V
Applications Of OPA656NB/250
High-speed data acquisition (DAQ)
Medical and chemical analyzers
Active probes
Oscilloscopes
Optical communication modules
Test and measurement front-ends
Optical time-domain reflectometry (OTDR)
