제품 상세 정보:
|
| 부품 번호: | EN5311QI | 출력 전압:: | 6 Ｖ에 대한 600 mV |
|---|---|---|---|
| 출력 전류:: | 1A | 출력 수 :: | 1 출력 |
| 스위칭 주파수:: | 4MHz | 입력 전압:: | 2.4V ~ 6.6V |

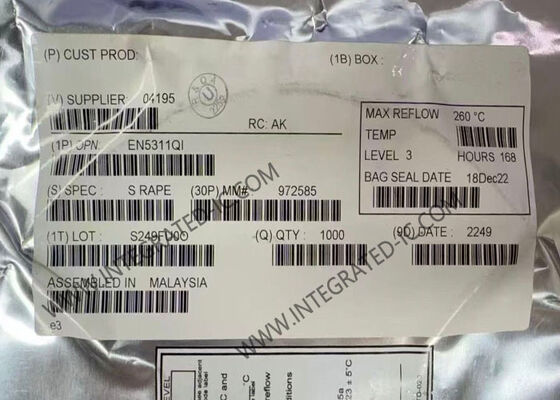

EN5311QI Integrated Circuit Chip 1A PowerSoC Step-Down DC-DC Switching Converter With Integrated Inductor
Product Description Of EN5311QI
The Ultra-Low-Profile EN5311QI is targeted to applications where board area and profile are critical. EN5311QI is a complete power conversion solution requiring only two low cost ceramic MLCC caps. Inductor, MOSFETS, PWM, and compensation are integrated into a tiny 5mm x 4mm x 1.1mm QFN package. The EN5311QI is engineered to simplify design and to minimize layout constraints. 4 MHz switching frequency and internal type II compensation provides superior transient response. With a 1.1 mm profile,the EN5311QI is ideal for space and height constrained applications.
Specification Of EN5311QI
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.4V
|
|
Voltage - Input (Max)
|
6.6V
|
|
Voltage - Output 1
|
0.6 ~ 6V
|
|
Current - Output (Max)
|
1A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
Remote On/Off, OCP, OTP, SCP, UVLO
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
94%
|
Features Of EN5311QI
Revolutionary Integrated Inductor
5mm x 4mm x1.1mm QFN package
Very small total solution foot print
4 MHz switching frequency
Only two low cost MLCC caps required
Designed for low noise/low EMI
Very low ripple voltage; 5mVp-p Typical
High efficiency, up to 95%
Wide 2.4V to 6.6V input range
1000mA continuous output current
Less than 1 µA standby current.
Excellent transient performance
3 Pin VID Output Voltage select
External divider: 0.6V to VIN-Vdropout
100% duty cycle capable
Short circuit and over current protection
UVLO and thermal protection
RoHS compliant; MSL 3 260°C reflow
Applications Of EN5311QI
Area constrained applications
Noise Sensitive Applications such as A/V and RF
LDO replacement for improved thermals
Set top box/home gateway
Smart phones, PDAs
VoIP and Video phones
Personal Media Player
