제품 상세 정보:
|
| 부품 번호: | HMC802ALP3ETR | 감쇠치: | 20dB |
|---|---|---|---|
| 주파수 범위: | 0Hz ~ 1GHz | 비트 수: | 1개 비트 |
| 임피던스: | 50옴 | 감쇠기 단계 크기: | 0.6dB |

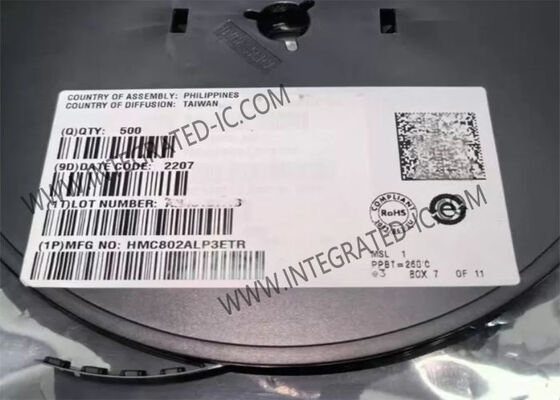

HMC802ALP3ETR is a broadband bidirectional 1-bit GaAs IC digital attenuator in a low cost leadless surface mount package. This single positive control line digital attenuator utilizes off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 10 GHz, the insertion loss is less than 3 dB typical and attenuation accuracy is excellent at ±0.6 dB typical. HMC802ALP3ETR also features a high IIP3 of +55 dBm. One TTL/CMOS control input is used to select the attenuation state and a single Vdd bias of +5V is required.HMC802ALP3ETR Integrated Circuit Chip 1-Bit Digital Positive Control Attenuator QFN-16
Specifications
Product Category
Attenuators
Attenuation
20 dB
Maximum Frequency
10 GHz
Impedance
50 Ohms
Number of Bits
1 bit
Number of Channels
1 Channel
Attenuator Step Size
0.6 dB
Maximum Operating Temperature
+85℃
Minimum Operating Temperature
-40℃
Key Features
