제품 상세 정보:
|
| 부품 번호: | IMX992-AABA-C | 이미지 크기: | 대각선 11.4mm(1/1.4인치) |
|---|---|---|---|
| 유효 픽셀: | 약 2592(H) × 2056(V) 532만 화소 | 픽셀 크기: | 3.45μm(H) × 3.45μm(V) |
| 치수: | 30.0mm(H) × 30.0mm(V) | 출력 인터페이스: | SLVS(2채널/4채널/8채널) / MIPI(2레인/4레인) |

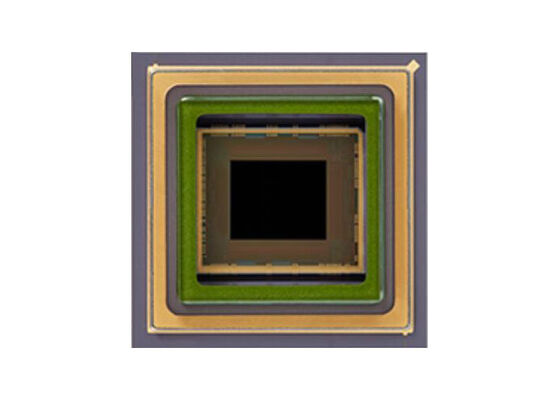

IMX992-AABA-C is a SWIR sensor with a diagonal of 11.4 mm (1/1.4 inches) and an effective pixel count of 5.32 million. Equipped with an upgraded version of SenSWIR™ technology, it achieves a compact, high-resolution design thanks to its 3.45 μm micro-pixels.
| Parameter | Specification |
|---|---|
| Image Size | Diagonal 11.4 mm (1/1.4-inch) |
| Effective Pixels | 2592 (H) × 2056 (V), approx. 5.32 million pixels |
| Pixel Size | 3.45 μm (H) × 3.45 μm (V) |
| Optical Black Area | Horizontal: 96 pixels at the front, 0 pixels at the rear Vertical direction: 24 pixels at the front, 0 pixels at the rear |
| Frame Rate (Maximum) - Full-pixel Output | 8-bit: 131 fps 10-bit: 120 fps 12-bit: 70 fps |
| Input Frequency | 37.125 MHz / 74.25 MHz / 54 MHz |
| Power Supply | 1.2 V, 1.8 V, 2.2 V, 3.3 V |
| Shutter Mode | Global Shutter (Rolling Shutter when DRRS is enabled) |
| Output Interface | SLVS (2 ch / 4 ch / 8 ch) / MIPI (2 lane / 4 lane) |
| Dimensions | 30.0 mm (H) × 30.0 mm (V) |
| Sensitivity | 291 mV |
| Saturation Level | 360 mV |
| Quantum Efficiency | >75 % |
| Part Number | Package |
|---|---|
| PIC32MK0512MCF100-I/PT | 100-TQFP |
| PIC32MK0512GPD100-E/PT | 100-TQFP |
| PIC32MK0512MCF100T-I/PT | 100-TQFP |
| PIC32MK0512GPD100-I/PT | 100-TQFP |
| PIC32MK0512GPD064T-E/MR | 64-VQFN |
| PIC32MK0512GPE064TI/MR | 64-VFQFN |
| PIC32MK0512MCM064TE/MR | QFN-64 |
| PIC32MK0512MCM064T-I/MR | 64-QFN |
| PIC32MK0512MCM100-E/PT | 100-TQFP |
| PIC32MK0512MCJ064TI/R4X | 64-VQFN |
| PIC32MK0512MCJ064-I/PT | 64-TQFP |
| PIC32MK0512MCJ064-I/R4X | 64-VQFN |
| PIC32MK0512MCJ064T-E/R4X | 64-VQFN |
| PIC32MK0512MCJ048-I/7MX | 48-VQFN |
| PIC32MK0512MCJ048T-E/7MX | 48-VQFN |
| PIC32MK0512MCJ048-I/Y8X | 48-TQFP |
| PIC32MK0512MCJ048T-I/7MX | 48-VQFN |
| PIC32MK0512GPK100-E/PT | 100-TQFP |
| PIC32MK0512GPK100-I/PT | 100-TQFP |
| PIC32MK0512GPK064-I/MR | 64-VFQFN |
| PIC32MK0512GPK064T-E/MR | 64-VFQFN |
| PIC32MK0512GPK064T-I/MR | 64-VFQFN |
| PIC32MK0512GPG064T-E/R4X | 64-VFQFN |
| PIC32MK0512GPG064T-I/R4X | 64-VFQFN |
| PIC32MK0256MCJ064T-I/R4X | 64-VQFN |
| PIC32MK0512GPG064-E/PT | 64-TQFP |
| PIC32MK0512GPG064-I/PT | 64-TQFP |
| PIC32MK0512GPG064-I/R4X | 64-VFQFN |
| PIC32MK0256MCJ064-E/PT | 64-TQFP |
| PIC32MK0256MCJ064-E/R4X | 64-VQFN |
Yes, all products are original, new original import is our purpose.
We are ISO 9001:2015 Certified Company and member of ERAI.
Yes, we support sample order and small order. Sample cost is different according to your order or project.
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
