제품 상세 정보:
|
| 부품 번호: | IMX347LQR | 입력 주파수 :: | 6~27MHz/37.125MHz/74.25MHz |
|---|---|---|---|
| 이미지 크기: | 유형 1/1.8 | 패키지: | LGA-132 |
| 강조하다: | Diagonal 9.04 mm Sensor IC,Type 1/1.8 CMOS Image Sensor,4.17 M effective pixels Solid-State Image Sensor |
||

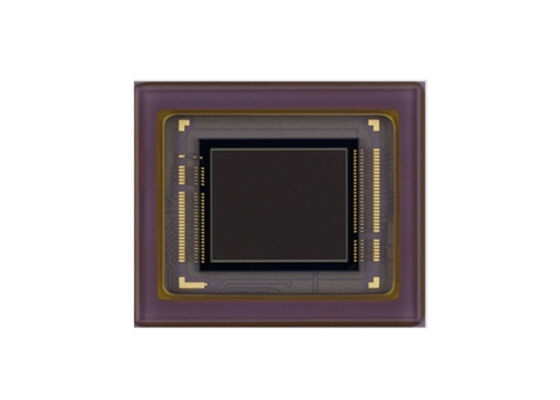

IMX347LQR Sensor IC Diagonal 9.04 mm CMOS Active Pixel Type Solid-State Image Sensor Product Overview Of IMX347 IMX347 is a diagonal 9.04 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 4.17 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and features low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and
